Butterfly Valves

Description

Ductile Iron Lugged and Tapped Butterfly Valves. EPDM Liner. Stainless Steel Disc. ISO Top.

Connection

To suit PN16 Flanges

Approvals/ other

CE, WRAS Approved

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valves with gearbox. EPDM Liner. Stainless Steel Disc.

Connection

To suit PN16 Flanges

Approvals/ other

CE and WRAS Approved

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valves with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

DN500 & DN600 subject to factory lead time.

Connection

To suit PN16 Flanges

Approvals/ other

CE Approved

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

PN25 Ductile Iron Butterfly Valve Lugged & Tapped Type. Vulcanised Liner. Stainless Steel Disc. ISO Top.

Connection

To suit PN25 Flanges

Pressure

25 Bar Rated

Temperature

-10°C to +110°C

Description

PN25 Ductile Iron Butterfly Valve Lugged & Tapped Type with gearbox. Vulcanised Liner. Stainless Steel Disc.

Connection

To suit PN25 Flanges

Pressure

25 Bar Rated

Temperature

-10°C to +110°C

Description

ANSI 150 Ductile Iron Lugged and Tapped Butterfly Valves. EPDM Liner. Stainless Steel Disc. ISO Top.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting ANSI Class 150 (B16.42)

Approvals/ other

CE and WRAS Approved

Pressure

17.2 Bar Rated

Temperature

-10°C to +110°C

Description

ANSI 150 Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting ANSI Class 150 (B16.42)

Approvals/ other

CE and WRAS Approved

Pressure

17.2 Bar Rated

Temperature

-10°C to +110°C

Description

ANSI 150 Ductile Iron Lugged and Tapped Butterfly Valves with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Flanged mounting ANSI Class 150

Approvals/ other

CE Approved

Pressure

17.2 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 12". EPDM Liner. Stainless Steel Disc. ISO Top. To suit PN16 Flanges only. Gearbox available. Note: We strongly advise gearbox on all 8", 10" and 12".

Connection

Lugged and Tapped

Pressure

16 Bar Rated.

Temperature

-10°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve. EPDM Liner. Stainless Steel disc.

Connection

Lugged and Tapped

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 6". EPDM Liner. Stainless Steel Disc. ISO Top. To suit PN25 Flanges only. Gearbox available.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated.

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valves. NBR Liner. DI Zinc Plated Disc. ISO Top. 8"-12" Gearbox Operated.

Connection

Lugged and Tapped

Approvals/ other

CE Approved

Pressure

16 Bar Rated

Temperature

0°C to +90°C

Description

Ductile Iron Lugged and Tapped Butterfly Valves with gearbox. NBR Liner. DI Zinc Plated Disc. ISO Top.

Connection

Lugged and Tapped

Pressure

16 Bar Rated

Temperature

0°C to +90°C

Description

Ductile Iron Wafer Butterfly Valve. EPDM Liner. Stainless Steel Disc. ISO Top.

Connection

Wafer to suit PN10, PN16 & ANSI 150 Flanges

Approvals/ other

CE, WRAS Approved

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Wafer Butterfly Valve with gearbox. EPDM Liner. Stainless Steel Disc.

Connection

Wafer to suit PN10, PN16 & ANSI 150 Flanges

Approvals/ other

CE and WRAS Approved

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Wafer Butterfly Valve with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer to suit PN10, PN16 & ANSI 150 Flanges

Approvals/ other

CE Approved.

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

PN25 Ductile Iron Butterfly Valve Wafer Type. EPDM Liner. Stainless Steel Disc. ISO Top.

Stock Availability

Subject to factory lead time.

Connection

Flange mounting PN25 only

Pressure

25 Bar Rated

Temperature

-10°C to +110°C

Description

PN25 Ductile Iron Butterfly Valve Wafer Type. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Flange mounting PN25 only

Pressure

25 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type. Available from 2" to 12". EPDM Liner. Stainless Steel Disc. ISO Top. To suit PN10, PN16 and ANSI 150 Flanges. Gearbox available. Note: We strongly advise gearbox on all 8", 10" and 12" valves.

Connection

Wafer

Pressure

Up to 16 Bar

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. Available 1.1/2" to 24" (see separate datasheet for 16" to 24"). BS5155 (BS EN593). Epoxy Coat Finish. ISO 5211 Direct Mount.

Connection

Universal Flange Mounting PN16 PN10 ASA150

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. BS5155 (BS EN593). Epoxy Coat Finish. ISO 5211 Direct Mount.

Connection

Universal Flange Mounting PN16 PN10 ASA150

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type. Available from 2" to 6". EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Ductile Iron Wafer Butterfly Valve. NBR Liner. Stainless Steel Disc. ISO Top.

Connection

Wafer to suit PN10, PN16 & ANSI 150 Flanges

Approvals/ other

CE Approved

Pressure

16 Bar Rated

Temperature

-10°C to +90°C

Description

Gearbox to suit ART 110, ART 115, ART 120, ART 135 and ART 145.

Description

Gearbox to suit ART 125 and ART 140

Description

Fixed Orifice Regulating Wafer Butterfly Valve. Position Indicator. Fixed orifice with ±5% flow measurement accuracy. Supplied with 2 extended test points. Gearbox has multiple lockable positions. The ART 2115GB consists of an ART 115 Butterfly Valve coupled to a Fixed Orifice Flanged Metering Station to form a fixed orifice commissioning set with regulation and isolation capabilities. Supplied fully assembled.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN16 only.

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Fixed Orifice Regulating Lugged and Tapped Butterfly Valve. Position Indicator. Fixed orifice with ±5% flow measurement accuracy. Supplied with 2 extended test points. Gearbox has multiple lockable positions. The ART 2135GB consists of an ART 135 Butterfly Valve coupled to a Fixed Orifice Flanged Metering Station to form a fixed orifice commissioning set with regulation and isolation capabilities. Supplied fully assembled.

Stock Availability

Subject to factory lead time.

Connection

Flange Mounting PN16 only.

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Wafer Butterfly Valve. EPDM Liner. Ductile Iron / Nickel Plated Disc. ISO Top

Connection

Wafer PN10 PN16 & ASA 150 Flanges

Approvals/ other

CE Approved

Pressure

16 Bar Rated

Temperature

-20°C to +110°C

Description

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 12". EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 14". EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Ductile Iron disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Lugged and Tapped Type. Available from 2" to 6". EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated.

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Nickel Plated Ductile Iron disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Nickel Plated Ductile Iron disc.

Stock Availability

Subject to factory lead time.

Connection

Lugged and Tapped

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type. Available from 2" to 12". EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

16 Bar Rated

Temperature

-10°C to 110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

16 Bar Rated

Temperature

-10°c to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type. Available from 2" to 6". EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to +110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.

Stock Availability

Subject to factory lead time.

Connection

Wafer

Pressure

25 Bar Rated

Temperature

0°C to 110°C

Description

Ductile Iron Butterfly Valve Double Flanged Type. Flange mounting PN16 only. BS5155 (BS EN 593). ISO 5211 Direct Mount. Lockable handle. Epoxy paint finish. Vulcanised liner. BS EN558-1 Series 13.

Stock Availability

Subject to factory lead time.

Connection

Double Flanged

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

Description

Ductile Iron Butterfly Valve Double Flanged Type. Flange mounting PN16 only. BS5155 (BS EN593). ISO 5211 Direct Mount. Gearbox. Epoxy paint finish. Vulcanised liner. BS EN558-1 Series 13.

Stock Availability

Subject to factory lead time.

Connection

Double Flanged

Pressure

16 Bar Rated

Temperature

-10°C to +110°C

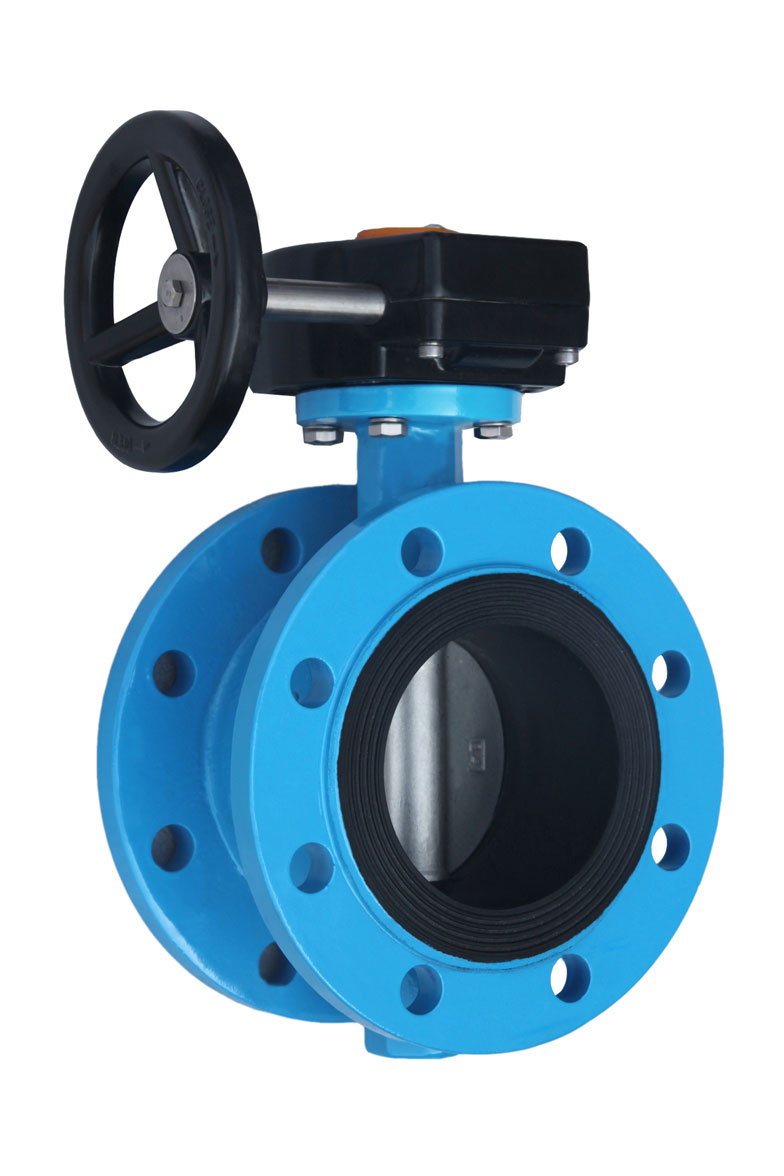

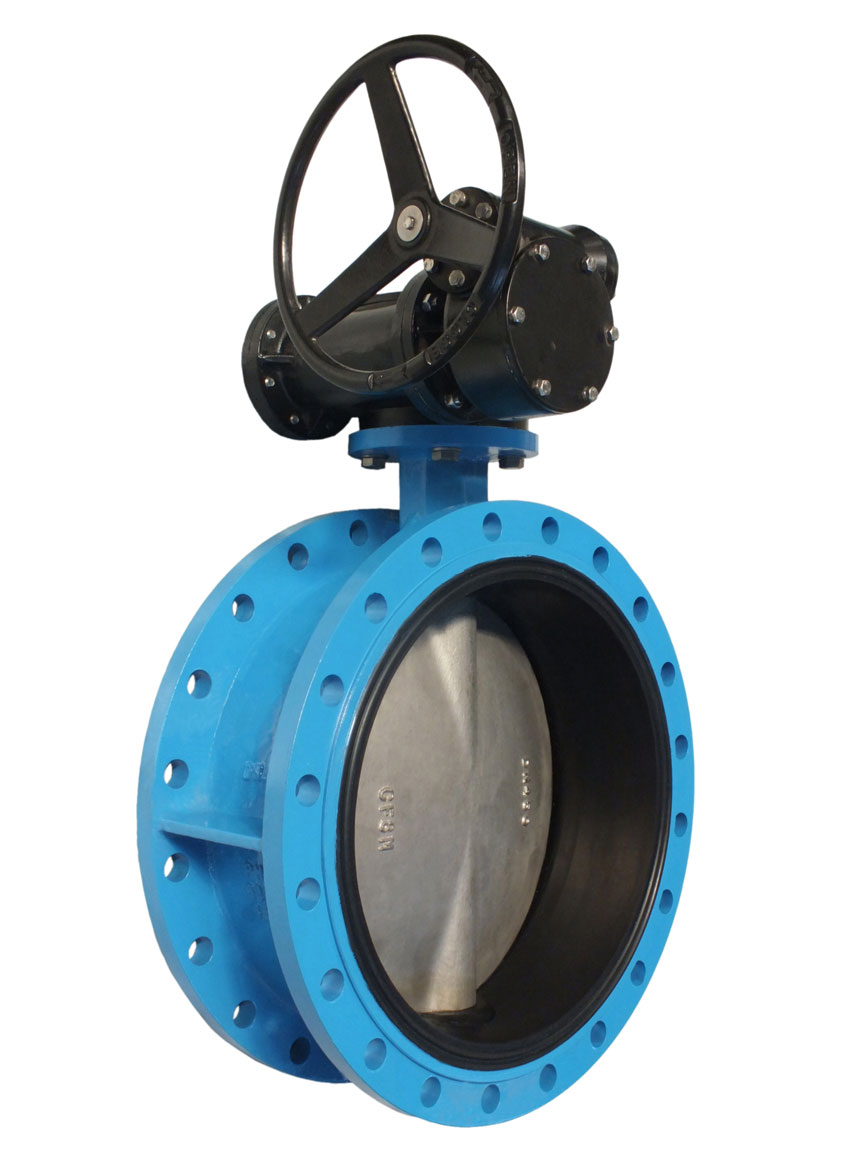

Description

Ductile Iron Butterfly Valve Double Flanged Type. Flange mounting PN16 only. BS5155 (BS EN 593). ISO 5211 Direct Mount. Gearbox. Epoxy paint finish. Vulcanised liner. BS EN558-1 Series 13.

Stock Availability

Subject to factory lead time.

Connection

Double Flanged

Pressure

16 Bar Rated

Temperature

-10°C to +110°C
