Solenoid Valves

Description

Brass Solenoid Valve. Pilot Operated 2/2 way. Normally Closed. EPDM Diaphragm. Voltage 24V ac/dc, 110V ac, 230V ac & 12V dc. Coil Rating IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE & WRAS Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Brass Solenoid Valve. Pilot Operated 2/2 way. Normally Closed NBR Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65. Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +80°C

Description

Brass Solenoid Valve. Pilot Operated 2/2 way. Normally Open. EPDM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac,12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE & WRAS Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Brass Solenoid Valve. Pilot Operated 2/2 way. Normally Open. NBR Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +80°C

Description

Brass Solenoid Valve. Servo-activated 2/2 way. Normally Closed. Body Brass. EPDM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Brass Solenoid Valve. Servo-activated 2/2 way. Normally Closed. Body Brass. NBR Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +80°C

Description

Brass Solenoid Valve Servo-activated 2/2 way Normally Closed. Body Brass. FPM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Brass Solenoid Valve. Servo-activated 2/2 way.Normally Open. Body Brass. EPDM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Brass Solenoid Valve. Servo-activated 2/2 way. Normally Open. Body Brass. NBR Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +80°C

Description

Brass Solenoid Valve. Servo-activated 2/2 way. Normally Open. FPM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Stainless Solenoid Valve. Servo-activated 2/2 way. Normally Closed. Body Stainless. EPDM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Stainless Solenoid Valve. Servo-activated 2/2 way. Normally Closed. Body Stainless. NBR Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +80°C

Description

Stainless Steel Valve. Servo-activated 2/2 way. Normally Closed. Body Stainless. FPM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Stainless Solenoid Valve. Servo-activated 2/2 way. Normally Open. Body Stainless. EPDM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Stainless Solenoid Valve. Servo-activated 2/2 way. Normally open. Body Stainless. NBR Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +80°C

Description

Stainless Solenoid Valve. Servo-activated 2/2 way. Normally Open. Body Stainless. FPM Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Pressure

See attached PDF

Temperature

0°C to +120°C

Description

Brass Solenoid Valve. Pilot Operated 2/2 way. Normally Closed. PTFE Diaphragm. Voltage 24V ac/dc, 110v ac, 230v ac, 12v dc. Coil Rating - IP 65.  Coil Duty Cycle - 100%.

Connection

BSP Parallel (ISO 228/1)

Pressure

See attached PDF

Temperature

0°C to +165°C

Description

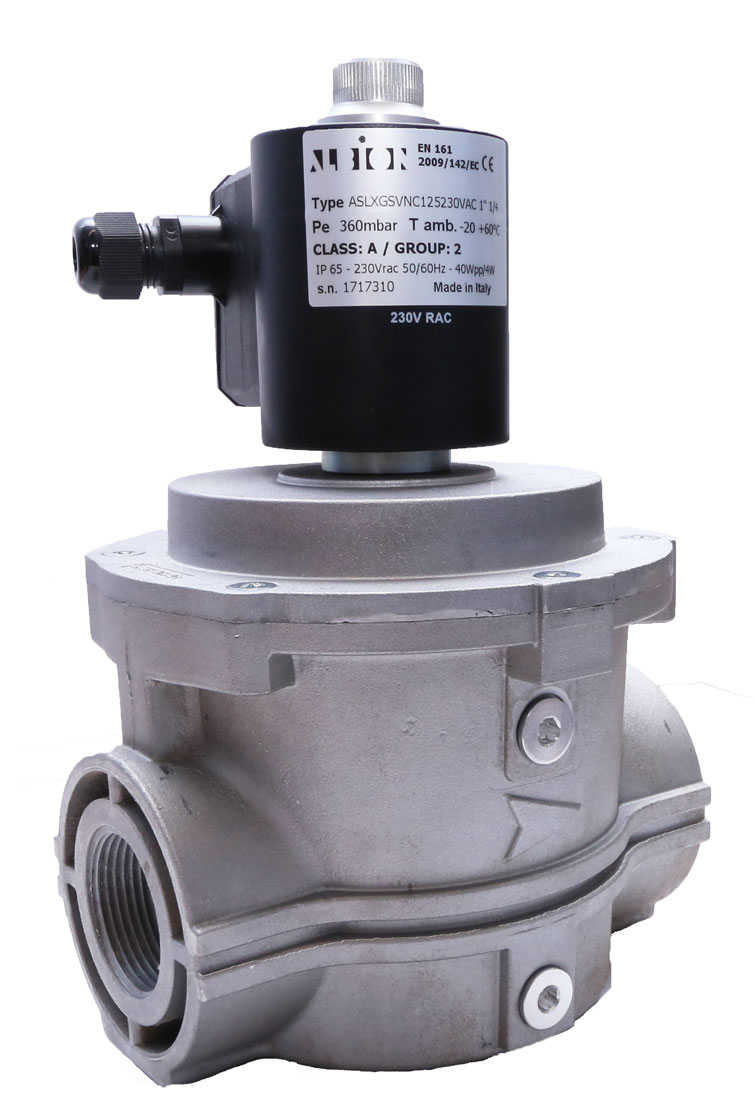

Automatic Gas Solenoid Valve. BSP ISO 228. Approved to EN161. Complies with PED 2014/68/EU. Voltage 230V (-15%+10%) 50-60Hz.

Connection

BSP ISO 228

Approvals/ other

EN161.
Complies with PED 2014/68/EU

Pressure

360 mbar

Temperature

-20°C to +60°C

Description

Automatic Gas Solenoid Valve. BSP ISO 228. Approved to EN161. Complies with PED 2014/68/EU. Voltage 230V (-15%+10%) 50-60Hz.

Connection

BSP ISO 228

Approvals/ other

EN161.
Complies with PED 2014/68/EU

Pressure

360 mbar

Temperature

-20°C to +60°C

Description

Automatic Gas Solenoid Valve. Flanged PN16. Approved to EN161. Complies with PED 2014/68/EU. Voltage 230V (-15%+10%) 50-60Hz.

Connection

Flanged PN16

Approvals/ other

EN161.
Complies with PED 2014/68/EU

Pressure

360 mbar

Temperature

-20°C to +60°C

Description

Universal Direct Mount Namur Solenoid. Voltage: 24v, 110v, 230v. IP65. Manual over-ride Control. Life Cycle 12,000,000 Operations.

Pressure

See attached PDF

Temperature

-20°C to +60°C

Description

Magnets to suit Albion's Solenoid Valve range. Available in 10mm, 15mm and 18mm. 20mm and 22mm is under development. Permanent magnet moulded in ABS plastic. Designed to convert electrically operated Solenoid Valves into manually operated valves. Ideal for engineers when electricity is not available (installation process / commissioning etc). Handy pocket size. Easy to use and time saving. Generic design fits most solenoids.

Description

PUT Timer

Connection

Via Coil & Plug

Approvals/ other

Range ON 0.5 to 10 secs
Range OFF 30 secs to 45 mins
LED light to indicate timing.

Pressure

See attached PDF

Temperature

See attached PDF
