Pressure Control Valves

Description

Gunmetal Safety Valve. EPDM Diaphragm. Other diaphragms available, see datasheet.

Connection

Screwed BSP Parallel Female

Approvals/ other

CE Approved

WRAS Approved

Pressure

Set Pressure 0.5 to 16 Bar

Temperature

-50°C to +195°C

Description

Gunmetal High Discharge Safety Valve. EPDM Diaphragm. Other diaphragms available, see datasheet.

Connection

Screwed BSP Parallel Female

Approvals/ other

CE Approved

WRAS Approved

Pressure

Set Pressure 0.5 to 16 Bar

Temperature

-50°C to +195°C

Description

Gunmetal Safety Valve DIN Flange PN16. EPDM Diaphragm.

Stock Availability

Subject to factory lead time.

Connection

Flanged connection

Approvals/ other

WRAS Approved.

Pressure

Set range: 0.5 to 16 bar

Temperature

-50°C to +195°C

Description

Gunmetal Safety Valve DIN Flange PN16. EPDM Diaphragm.

Stock Availability

Subject to factory lead time.

Connection

Flanged connection

Approvals/ other

WRAS Approved

Pressure

Set range: 0.5 to 16 bar

Temperature

-50°C to +195°C

Description

Cast Iron High Discharge Safety Valve. Fitted with bellows to protect moving parts.

Stock Availability

Subject to factory lead time.

Connection

Flange connection to BS EN1092

Approvals/ other

CE Approved

Pressure

Set Pressure 0.5 to 25 Bar

Temperature

-10°C to +120°C

Description

Pressure Reducing Valve with gauge. Controls static and dynamic pressure. Designed and manufactured to BS EN 1567. Easy to service high temperature cartridge. AISI 304 stainless steel cartridge filter. Supplied with a pressure gauge.

Connection

BSP Parallel Male Ends (ISO 228/1)

Pressure

Max Inlet Pressure: 16 Bar
Outlet Pressure range: 0.5 - 6 Bar
Minimum Inlet Pressure: 1 Bar
Factory Set Pressure: 3 Bar

Temperature

0°C to +80°C

Description

Pressure Reducing Valve with Gauge. Supplied with loose pressure gauge.

Connection

Compression ends (BS EN1254-2)
22mm with 15mm adaptors (adaptors supplied loose)

Approvals/ other

WRAS Approved
Conforms to BS EN 1567.

Pressure

See product datasheet.

Temperature

Max inlet temperature: 80°C

Description

Gunmetal Pressure Reducing Valve. Outlet pressure 1.5 to 7.0 bar (other outlet pressures available on request)

Stock Availability

Subject to factory lead time.

Connection

BSP Taper (ISO 7/1) M/M Ends

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)

Temperature

+5°C to +40°C

Description

Gunmetal Pressure Reducing Valve. Outlet pressure 1.5 to 7.0 bar (other outlet pressures available on request)

Connection

BSP Taper (ISO 7/1) M/M Ends

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)

Temperature

+5°C to +85°C

Description

Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.

Connection

BSP Taper M/M Ends

Approvals/ other

WRAS Approved

PED 2014/68/EU

BS EN 1567:1999 Approved

Pressure

Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.

Temperature

-10°C to +95°C

Description

Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.

Connection

BSP Parallel F/F Ends

Approvals/ other

WRAS Approved

PED 2014/68/EU

BS EN 1567:1999 Approved

Pressure

Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.

Temperature

-10°C to +95°C

Description

PN16 Adjustable Pressure Reducing Valve. Automatic control valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Available flanged PN25. Stainless Steel pilot tubing and valves

Connection

Flange - Conforms to BS EN 1092 PN16

Approvals/ other

Fully WRAS Approved Valve - Cert No. 2105035

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

PN16 Cast Iron Pressure Reducing Valve. Suitable for liquids. Adjustment dial for setting without operating pressure; bonnet can be positionable. Conforms to BS EN 1567. Supplied with pressure gauges.

Connection

Flange conforms to BS EN 1092-2

Pressure

Max Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 - 7 Bar
Low pressure (Inlet: 8 Bar. Outlet: 0.5-3 Bar) & High pressure (Inlet: 16 Bar. Outlet: 3-12 Bar) versions available on request.

Temperature

+5°C to +65°C

Description

PN25 Cast Iron Pressure Reducing Valve. Suitable for liquids. Adjustment dial for setting without operating pressure; bonnet can be positionable. Conforms to BS EN 1567. Supplied with pressure gauges.

Stock Availability

Subject to factory lead time.

Connection

Flange conforms to BS EN 1092-2

Pressure

Max Inlet Pressure: 25 Bar Outlet Pressure: 1.5 - 7 Bar High pressure (3-12 Bar) version available on request.

Temperature

+5°C to +65°C

Description

Pressure Reducing Valve with gauge. Sizes available 1" - 2" BSP Parallel Male Ends. Controls static and dynamic pressure. Easy to service high temperature cartridge. AISI 304 stainless steel cartridge filter.

Connection

BSP Parallel Male Ends (ISO 228/1)

Approvals/ other

WRAS Approved
Conforms to BS EN 1567

Pressure

See product datasheet.

Temperature

Max inlet temperature: 80°C

Description

Pressure Reducing Valve with gauge. Sizes 1/2" and 3/4" available BSP Parallel Female Ends. Controls static and dynamic pressure. Easy to service high temperature cartridge. AISI 304 stainless steel cartridge filter.

Connection

BSP Parallel Female Ends

Approvals/ other

WRAS Approved.
Conforms to BS EN 1567.

Pressure

See product datasheet.

Temperature

Max inlet temperature: 80°C

Description

Bronze / Gunmetal Pressure Reducing Valve. Suitable for neutral and non-neutral liquids, air, gases, vapours and warm water. Gauges available on request.

Stock Availability

Subject to factory lead time.

Connection

Flanged (DIN EN 1092)

Approvals/ other

WRAS Approved
DIN DVGW Guidelines
PED 2014/68/EU
24 month warranty

Pressure

Inlet Pressure: Up to 40 Bar
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.

Temperature

-20°C to +120°C*
*See additional info on datasheet

Description

Brass Adjustable Pressure Relief Valve with manual test function. Suitable for maintaining system pressures and for use as a bypass valve.

Connection

Screwed BSP Parallel (ISO 228/1)

Approvals/ other

CE Approved

Complies to Directive PED 97/23/EC

Pressure

Adjustable range from 0.5 to 16 Bar

Temperature

0°C to 150°C

Description

Gunmetal  Pressure Relief Valve. PTFE Seal.

Stock Availability

Subject to factory lead time.

Connection

BSP Parallel (ISO 228)

Approvals/ other

Complies with PED 2014/68/EU

Pressure

Set pressure 0.2 to 20 Bar

Temperature

-60°C to +225°C

Description

Stainless Steel Pressure Relief Valve. PTFE Seal.

Stock Availability

Subject to factory lead time.

Connection

BSP Parallel Female (ISSO 228/1)

Pressure

Up to 20 Bar Rated

Temperature

-60°C to +225°C

Description

Stainless Steel Pressure Reducing Valve. EPDM Seal.

Stock Availability

Subject to factory lead time.

Connection

BSP Taper M/M Ends (ISO 7/1)

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.

Temperature

-10°C to +95°C

Description

Stainless Steel Pressure Reducing Valve. EPDM Seal.

Stock Availability

Subject to factory lead time.

Connection

BSP Parallel F/F Ends (ISO 228/1)

Approvals/ other

WRAS Approved

Pressure

Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.

Temperature

-10°C to +95°C

Description

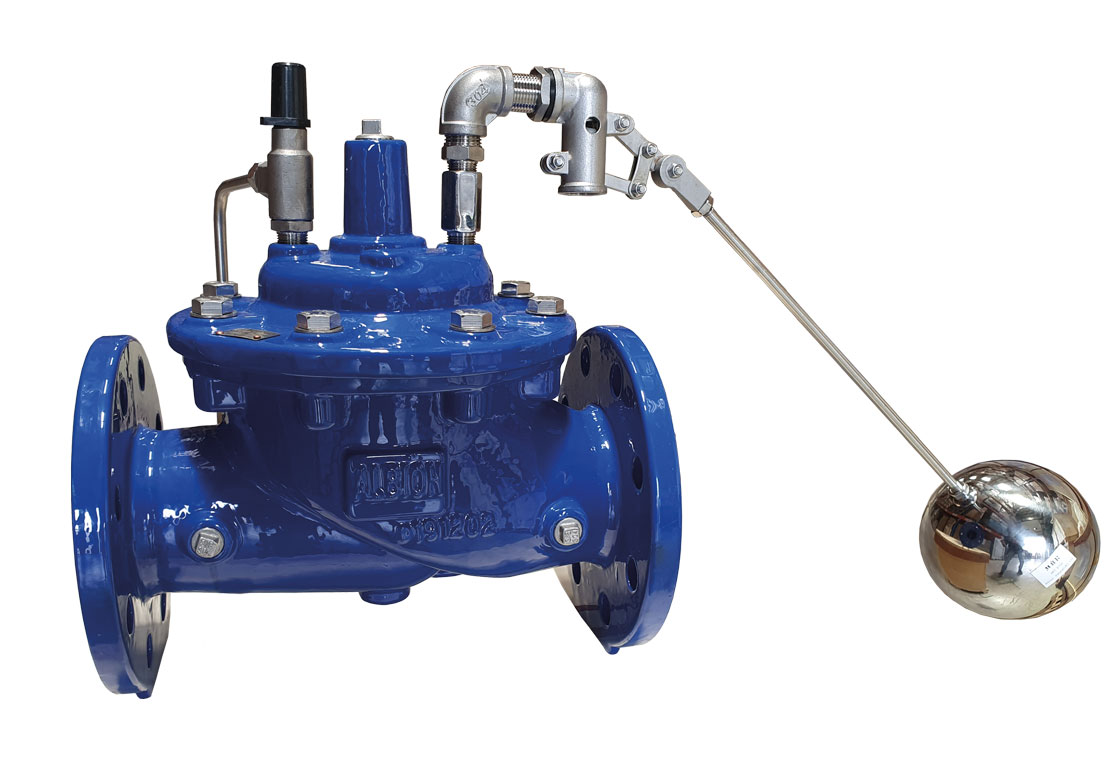

PN16 Float Control Valve. Automatic Control Valve. Suitable for potable water applications. Conforms to BS EN 558-1 Series 1. Stainless Steel pilot tubing and valves. Copper float option.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to BS EN 1092 PN16
Also available flanged PN25.

Approvals/ other

Fully WRAS Approved Valve - Cert No. 2104026

Pressure

Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)

Temperature

0°C to +80°C

Description

ANSI Float Control Valve. Automatic control valve. Suitable for potable water applications. Conforms to BS EN 558-1 Series 1. Stainless steel pilot tubing and valves. Copper float option.

Stock Availability

Subject to factory lead time.

Connection

Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300

Approvals/ other

Fully WRAS Approved Valve - Cert No. 2104026

Pressure

Max Pressure: 16 Bar Rated
Minimum Differential Pressure: 5psi (0.035MPa)

Temperature

0°C to +80°C

Description

PN16 Float Control ON/OFF Valve. Automatic Control Valve. Suitable for potable water applications. WRAS Approved Epoxy Coated Body. Conforms to BS EN 558-1 Series 1. Stainless Steel Pilot Tubing and Valves. Copper float option.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to BS EN 1092 PN16
Also available flanged PN25.

Pressure

Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)

Temperature

0°C to +80°C

Description

ANSI Float Control ON/OFF Valve. Automatic Control Valve. Suitable for potable water applications. WRAS Approved Epoxy Coated Body. Conforms to BS EN 558-1 Series 1. Stainless Steel Pilot Tubing and Valves. Copper float option.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to ANSI 150 (B16.42)
Also available flanged ANSI Class 300.

Pressure

Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)

Temperature

0°C to +80°C

Description

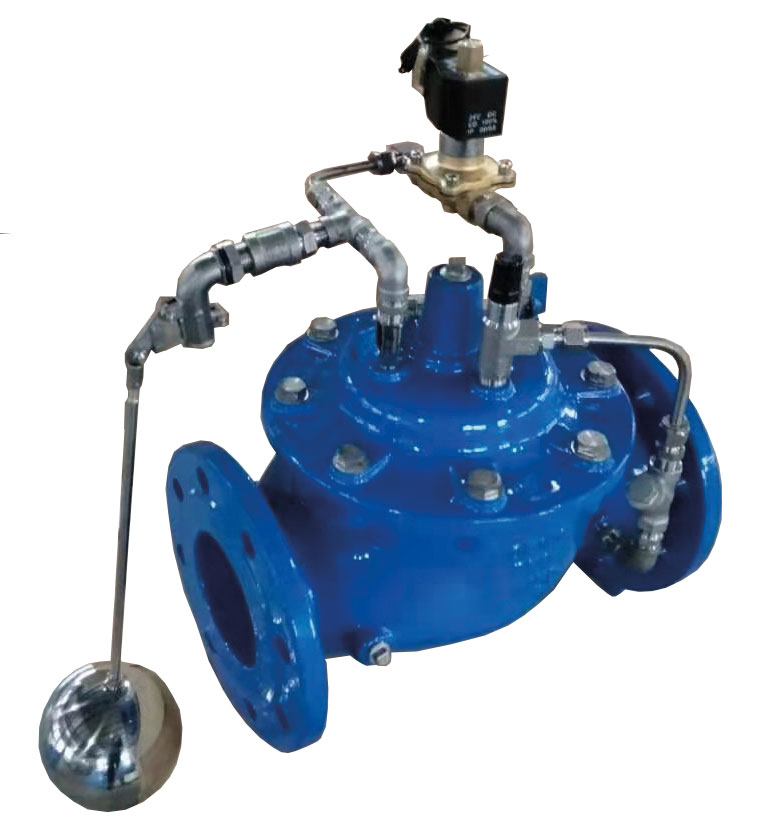

Modulating Float Control Valve with Solenoid Valve. Automatic Control Valve. Suitable for Potable Water Applications. WRAS Approved Epoxy Coated Body. Stainless Steel Pilot Tubing, Valves, Float Pilot and Brass Pilot Solenoid Valve. Copper Float Option. Normally Closed and Normally Open option.

Stock Availability

Subject to factory lead time.

Connection

Flanged. Conforms to BS EN 1092 PN16
Also available Flanged PN25.

Pressure

Max Pressure: 16 Bar
Minimum Differential Pressure: 5PSI (0.035MPa)

Temperature

0°C to +80°C

Description

Modulating Float Control Valve with Solenoid Valve. Automatic Control Valve. Suitable for potable water applications. WRAS Approved Epoxy Coated Body. Stainless Steel Pilot Tubing, Valves, Float Pilot and Brass Pilot Solenoid Valve. Copper float option. Normally Closed and Normally Open Option.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300.

Pressure

Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)

Temperature

0°C to +80°C

Description

Modulating Float Control Valve with Solenoid Valve. Automatic Control Valve. Suitable for Potable Water Applications. WRAS Approved Epoxy Coated Body. Stainless Steel Pilot Tubing, Valves Float Pilot and Brass Solenoid Valve. Copper Float Option. Normally Closed and Normally Open option.

Stock Availability

Subject to factory lead time.

Connection

Flanged - Conforms to BS EN 1092 PN16
Also available Flanged PN25.

Pressure

Max Pressure: 16 Bar
Minimum Differential Pressure: 5PSI (0.035MPa)

Temperature

0°C to +80°C

Description

Modulating Float Control Valve with Solenoid Valve. Automatic Control Valve. Suitable for Potable Water Applications. WRAS Approved Epoxy Coated Body. Stainless Steel Pilot Tubing, Valves, Float Pilot and Brass Pilot Solenoid Valve. Copper Float Option. Normally Closed and Normally Open Option.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to ANSI 150 (B16.42)
Available Flanged ANSI Class 300.

Pressure

Max Pressure: 16 Bar
Minimum Differential Pressure: 5PSI (0.035MPa)

Temperature

0°C to +80°C

Description

ANSI Adjustable Pressure Reducing Valve. Automatic control valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Flange conforms to ANSI 150 (B16.42). Stainless steel pilot tubing and valves.

Stock Availability

Subject to factory lead time.

Connection

Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300

Approvals/ other

Fully WRAS Approved Valve - Cert No. 2105035

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

PN25 Adjustable Pressure Reducing Valve. Automatic control valve. WRAS approved epoxy coating and polymers. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Available flanged PN16. Stainless Steel pilot tubing and valves.

Connection

Flange - Conforms to BS EN 1092 PN25

Pressure

25 Bar Rated

Temperature

0°C to +80°C

Description

PN16 Adjustable Pressure Relief / Sustaining Valve. Automatic control valve. Suitable for potable water applications. WRAS Approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Flange conforms to BS EN 1092 PN16. Available flanged PN25. Stainless steel pilot tubing and valves.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to BS EN 1092 PN16

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

PN25 Adjustable Pressure Relief / Sustaining Valve. Automatic Control Valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN558-1 Series 1. Stainless Steel pilot tubing and valves. Also available flanged PN16.

Stock Availability

Subject to factory lead time.

Connection

Flanged conforms to BS EN1092 PN25.

Pressure

25 Bar Rated

Temperature

0°C to +80°C

Description

ANSI Adjustable Pressure Relief / Sustaining Valve. Automatic control valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Flange conforms to ANSI 150 (B16.42). Stainless steel pilot tubing and valves.

Stock Availability

Subject to factory lead time.

Connection

Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

PN16 Solenoid On/Off Control Valve. Automatic control valve. Suitable for potable water applications. WRAS approved epoxy coated body. Conforms to BS EN558-1 Series 1. Available flanged PN25. Stainless steel pilot tubing and valves and brass pilot solenoid valve. Normally closed and normally open option.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to BS EN1092 PN16

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

ANSI Solenoid On/Off Control Valve. Automatic control valve. Suitable for potable water applications. WRAS approved epoxy coated body. Conforms to BS EN558-1 Series 1. Stainless steel pilot tubing and valves and brass pilot solenoid valve. Normally closed and normally open option.

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

PN16 Adjustable Pressure Reducing Valve with Low Flow Bypass. Automatic Control Valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Available flanged PN25. Stainless Steel pilot tubing and valves

Stock Availability

Subject to factory lead time.

Connection

Flange - Conforms to BS EN 1092 PN16

Approvals/ other

Fully WRAS Approved Valve - Cert No. 2105035

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

ANSI Adjustable Pressure Reducing Valve with Low Flow Bypass. Automatic control valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Flange conforms to ANSI 150 (B16.42). Stainless steel pilot tubing and valves.

Stock Availability

Subject to factory lead time.

Connection

Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300

Approvals/ other

Fully WRAS Approved Valve - Cert No. 2105035

Pressure

16 Bar Rated

Temperature

0°C to +80°C

Description

Stainless Steel Safety Valve. PTFE Seal. PED 2014/68/EU.

Stock Availability

Subject to factory lead time.

Connection

BSP Parallel Female (ISO 228/1)

Pressure

Up to 70 Bar Rated.

Temperature

-60°C to +225°C

Description

Stainless Steel Safety Valve. PTFE Seal. PED 2014/68/EU

Stock Availability

Subject to factory lead time.

Connection

BSP Parallel Male (ISO 228/1)

Pressure

Up to 25 Bar Rated

Temperature

-60°C to +225°C

Description

Brass Atmospheric Discharge Safety Valve. PTFE Seal.

Stock Availability

Subject to factory lead time.

Connection

Male BSP Parallel (ISO 228)

Approvals/ other

Complies to PED 2014/68/EU

Pressure

Set pressure: 0.2 to 50 bar

Temperature

-60°C to +225°C
