BSP Taper
-
Description

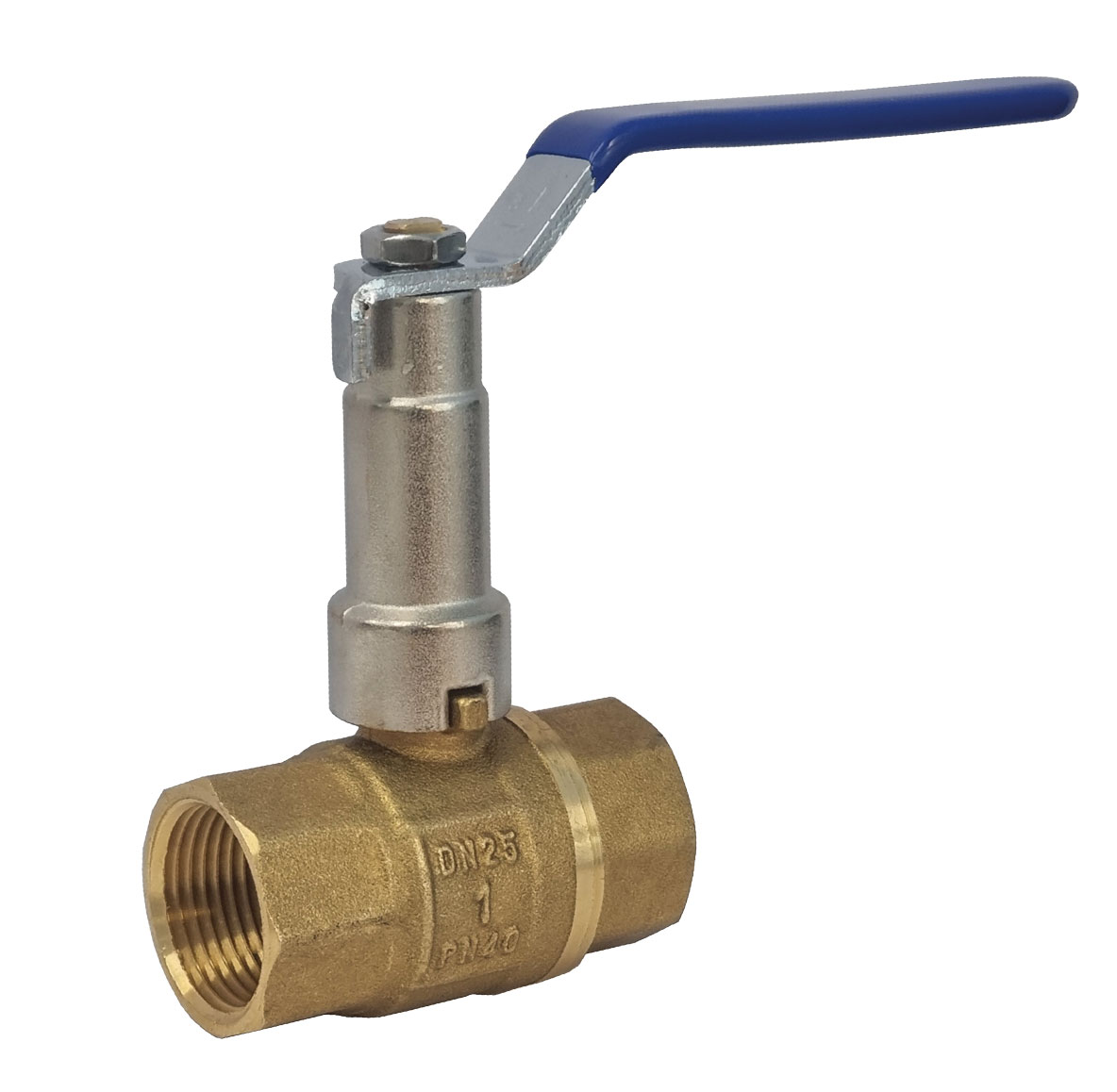

2 Piece DZR Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-20°C to +130°C
-
Description
2 Piece DZR Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
40 Bar Rated
Temperature
-20°C to +130°C
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
CE, WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated (¼" to 2")
25 Bar Rated (2½" to 4")
Gas
5 Bar Rated (¼" to 4")Temperature
Liquids
-20°C to +140°C
Gas
-20°C to +60°C -
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F End (ISO 7/1)
Approvals/ other
WRAS Approved & EN331 Gas Approved
Pressure
See datasheet for full details
Temperature
See datasheet for full details
-
Description
1 Piece Stainless Steel Ball Valve. Reduced Bore. PTFE Seals. Locking lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
69 Bar Rated (¼" - 1¼") 55 Bar Rated (1½" - 2")
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
(Butt Weld and Socket Weld Ends available upon request)Approvals/ other
Pressure
82 Bar Rated (1/4" - 1") 69 Bar Rated (1.1/4" - 1.1/2") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Carbon Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
(Butt Weld and Socket Weld Ends available upon request)Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever. ISO5211 Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated 2" - 4")
Temperature
-25°C to +200°C
-
Description
Connection
Taper F/F Ends (ISO 7/1)
Approvals/ other
Atex Approved.
TUV Certified to API STD 607.Pressure
Up to 140 Bar
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'T' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'L' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description
2 Piece Bronze Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE
Pressure
40 Bar Rated
Temperature
-10°C to +140°C
-
PN40 Bronze Ball Valve. Bronze Body. Full Bore. Blow Out Proof Stem. MSS-SP-110. Read More
Not stocked in the UK.
Description
PN40 Bronze Ball Valve. Bronze Body. Full Bore. Blow Out Proof Stem. MSS-SP-110.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-10°C to +140°C
-
Description
PN20 DZR Brass Gate Valve. Full Bore. Handwheel Operation.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
BS 5154 Approved
WRAS ApprovedPressure
20 Bar Rated
Temperature
-20°C to +170°C
-
Description
PN20 DZR Brass Gate Valve. Full Bore. Lockshield - Key available separately.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
BS 5154 Approved
WRAS ApprovedPressure
20 Bar Rated
Temperature
-20°C to +170°C
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
BS 5154 Approved
Pressure
20 Bar Rated
Temperature
-20°C to +170°C
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
BS 5154 Approved & Kite Marked
Pressure
25 Bar Rated
Temperature
-10°C to +186°C
-
Description
Bronze Gate Valve. Handwheel Operated. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved & BS 5154 Approved
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Description
Bronze Gate Valve. Lockshield. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved & BS 5154 Approved
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Description
Stock Availability
Subject to factory lead time.
Connection
F/F BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
BS 5154
Pressure
20 Bar Rated.
Temperature
-20°C to +232°C
-
Not stocked in the UK.
Description
PN20 Bronze Gate Valve. Bronze Body and Disc. Screwed Bonnet. Non Rising Stem. BS 5154 / MSS-SP-80.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Description
Bronze Globe Valve. Renewable PTFE Seat.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
BS 5154 Approved
CE ApprovedPressure
32 Bar Rated
Temperature
-10°C to +200°C
-
Description
PN16 Bronze Globe Valve. Available in BSP or NPT.
Stock Availability
Subject to factory lead time.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
0°C to 232°C
-
PN20 Bronze Globe Valve. Bronze Body. Screwed Bonnet. BS 5154 / MSS-SP-80. Read More
Not stocked in the UK.
Description
PN20 Bronze Globe Valve. Bronze Body. Screwed Bonnet. BS 5154 / MSS-SP-80.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +180°C
-
Description
Bronze Swing Check Valve. Metal Seat.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Not stocked in the UK.
Description
PN20 Bronze Check Valve. Bronze Body and Disc. EPDM Seat. BS 5154 (BS EN 12288) / MSS-SP-80.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +150°C
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Description
Connection
Screwed BSP Taper (ISO 7/1)
NPT (ANSI B1.20.1) version available on request.Pressure
32 Bar Rated
Temperature
-10°C to +200°C (with plugs)
-10°C to +135°C (with ART 299) -
Not stocked in the UK.
Description
PN20 Bronze 'Y' Strainer. Bronze Body. Stainless Steel Strainer Basket. Tested to BS EN 12266.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Description
Connection
Screwed Male BSP Taper (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
Description
Bronze Drain Cock (Lockshield)
Connection
Screwed Male BSP Taper (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +40°C
-
Description
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +85°C
-
Description
Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.
Connection
BSP Taper M/M Ends
Approvals/ other
WRAS Approved
PED 2014/68/EU
BS EN 1567:1999 ApprovedPressure
Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Stainless Steel Pressure Reducing Valve. EPDM Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Taper M/M Ends (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
Gunmetal Pressure Reducing Valve. Outlet pressure 1.5 to 7.0 bar (other outlet pressures available on request)
Pressure
Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +40°C
-
Description
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +85°C
-
Description
Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.
Connection
BSP Taper M/M Ends (ISO 7/1)
Approvals/ other
WRAS Approved
PED 2014/68/EU
BS EN 1567:1999 ApprovedPressure
Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
PN16 Screwed Flexible Connector. EPDM Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1) Read More
NPT valves are subject to factory lead time.
Description
PN16 Screwed Flexible Connector. EPDM Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1)
Stock Availability
NPT valves are subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
-20°C to +100°C
-
PN16 Screwed Flexible Connector. NBR Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1) Read More
NPT valves are subject to factory lead time.
Description
PN16 Screwed Flexible Connector. NBR Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1)
Stock Availability
NPT valves are subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
-20°C to +80°C
-
Description
M/F Threaded Stainless Steel Expansion Joint with SS Mesh.
Stock Availability
Subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1)
Stainless Steel threaded union end and Male endPressure
Up to 25 Bar Rated
Temperature
-15°C to +200°C
-
Description
F/F Threaded Stainless Steel Expansion Joint with SS Mesh.
Stock Availability
Subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1)
Stainless Steel threaded union endPressure
Up to 25 Bar Rated
Temperature
-15°C to +200°C
-
Description
90° M/F Elbow. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Conical Seat Union Male / Female. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Barrel Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Weld Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Reducing Bush. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Reducing Hexagon Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Square Head Plug. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Head Plug. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hose Adaptor. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (BS21) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
0°C to +110°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
BSP or NPT
Pressure
Working pressure 150psi
Static pressure 250psi
Max. pressure 400psiTemperature
-73°C to +149°C
-
Description
Stock Availability
Not stocked in the UK.
Connection
BSP and NPT
Pressure
Max Pressure 350psig
Working Pressure 150psi (10.6 bar)Temperature
0.5°C to 82°C
