Stainless Steel
-
Description
1 Piece Stainless Steel Ball Valve. Reduced Bore. PTFE Seals. Locking lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
69 Bar Rated (¼" - 1¼") 55 Bar Rated (1½" - 2")
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1")
69 Bar Rated (1¼" - 1½")
62 Bar Rated (2")Temperature
-25°C to +200°C
-
Description
2 Piece Stainess Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
NPT F/F Ends (ANSI B1.20.1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2")
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Device. ATEX Approved.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
ATEX Approved.
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
Stainless Steel 2 piece ball valve. Full Bore. PTFE Seals. Locking device. ATEX Approved.
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
ATEX Approved
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Device. ATEX Approved.
Connection
NPT F/F Ends (ANSI B 1.20.1)
Approvals/ other
ATEX Approved.
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
(Butt Weld and Socket Weld Ends available upon request)Approvals/ other
Pressure
82 Bar Rated (1/4" - 1") 69 Bar Rated (1.1/4" - 1.1/2") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
Socket Weld Ends
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever. ISO5211 Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated 2" - 4")
Temperature
-25°C to +200°C
-
DN76+ subject to factory lead time.
Description
Stainless Steel 3 Piece Press Ball Valve ISO5211. Dedicated M profile. Full bore. Locking device.
Stock Availability
DN76+ subject to factory lead time.
Connection
Press
Pressure
24 Bar (15mm), 20 Bar (22mm & 28mm), 17 Bar (35mm -54mm), 10 Bar (76mm - 108mm)
Temperature
-20°C to +120°C
-
Description
Connection
Taper F/F Ends (ISO 7/1)
Approvals/ other
Atex Approved.
TUV Certified to API STD 607.Pressure
Up to 140 Bar
Temperature
-25°C to +200°C
-
Description
Connection
NPT F/F Ends (ANSI B 1.20.1)
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
Up to 140 Bar Rated
Temperature
-25°C to +200°C.
-
Description

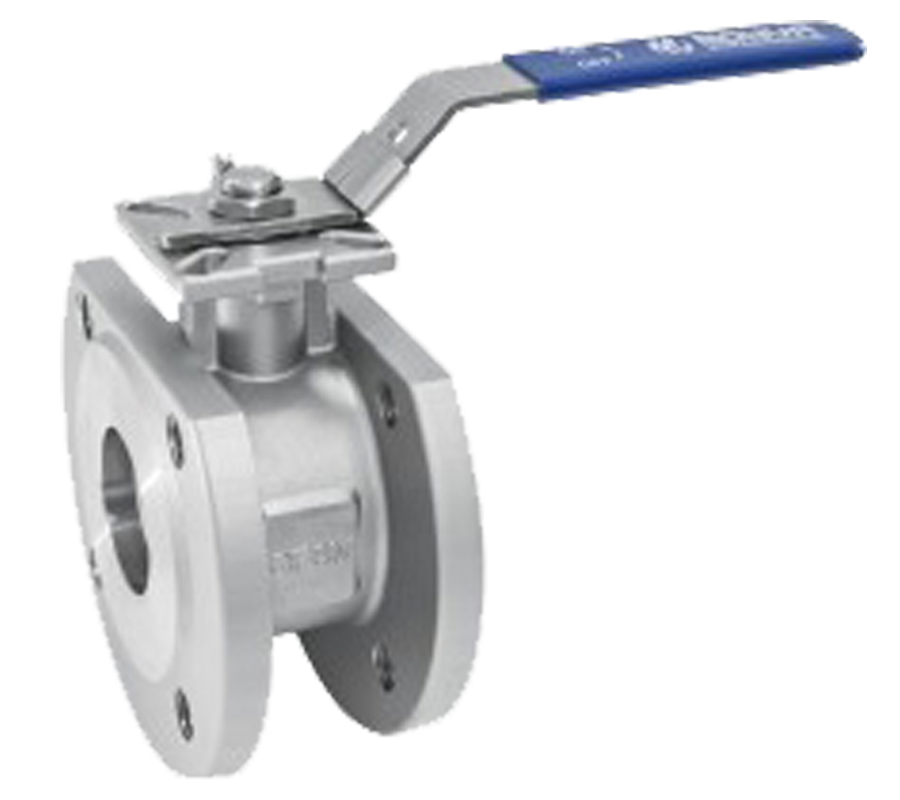

Connection
Flanged PN16/40
Approvals/ other
Pressure
40 Bar Rated (½" - 2") 16 Bar Rated (2½" - 8")
Temperature
-25°C to +200°C (½" to 4") -25°C to +180°C (5" to 8")
-
Description
Connection
Flanged PN16
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
40 Bar Rated (½-2") 16 Bar Rated (2½- 4")
Temperature
-25°C to +200°C
-
Description
Connection
Flange Mounting ANSI Class 150 (B16.5)
Approvals/ other
Pressure
20 Bar Rated
Temperature
-25°C to +200°C
-
Description
Connection
Flange Mounting ANSI Class 150 (B16.5)
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
20 Bar Rated.
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'T' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'L' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description
Stainless Steel Gate Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel Globe Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Description
Connection
BSP Parallel Male End
Pressure
16 Bar Rated (½" - 1"), 10 Bar Rated (1¼" - 2"), 8 Bar Rated (2½ - 4")
Temperature
0°C to +90°C
-
Description
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated (½" - 1")
10 Bar Rated (1¼" - 2")
8 Bar Rated (2½" - 4")Temperature
0°C to +90°C
-
Description
PN40 Stainless Steel Dual Plate Wafer Check Valve. Viton seat. PN40 rated.
Connection
Wafer Pattern to PN10, 16, 25 & 40 & ANSI 150 & 300 Flanges
Pressure
40 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel Disc Wafer Check Valve. 'O' Ring Viton.
Connection
Wafer Pattern to suit PN16 & ANSI 150 Flanges
Approvals/ other
ATEX Approved "O" Ring Viton.
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel Spring Wafer Check Valve
Connection
Wafer pattern to suit PN10, 16, 40 & ANSI 150 & 300 Flanges
Approvals/ other
ATEX Approved Metal Seat
Pressure
40 Bar Rated
Temperature
-25°C to +200°C
-
Description
Stainless Steel Swing Check Valve. Metal Seat.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel Spring Check Valve. Metal Seat.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1"), 69 Bar Rated (1¼" - 1½"), 62 Bar Rated (2" - 4")
Temperature
-25°C to +180°C
-
Description
Stainless Steel 'Y' Type Strainer. 1mm/1000 Micron Mesh.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Pressure
55 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel 'Y' Type Strainer Flanged PN16. ½" - 2" 1mm Mesh 2½" - 8" 2mm Mesh
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-25°C to +200°C
-
DN76+ subject to factory lead time.
Description
Stainless Steel 3 Piece Press Ball Valve ISO5211. Dedicated M profile. Full bore. Locking device.
Stock Availability
DN76+ subject to factory lead time.
Connection
Press
Pressure
24 Bar (15mm), 20 Bar (22mm & 28mm), 17 Bar (35mm - 54mm), 10 Bar (76mm - 108mm)
Temperature
-20°C to +120°C
-
PN16 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points. Read More
Sizes DN300+ are subject to factory lead time.
Description
PN16 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points.
Stock Availability
Sizes DN300+ are subject to factory lead time.
Connection
Wafer pattern. Fits between BS EN1092 flanged PN16.
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
PN25 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points.
Connection
Wafer pattern. Fits between BS EN1092 flanges PN25
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
ANSI Stainless Steel Orifice Plate (OP)
Stock Availability
Subject to factory lead time.
Connection
Wafer pattern. Fits between ANSI 150 flanges.
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
Stainless Steel Pressure Relief Valve. PTFE Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel Female (ISSO 228/1)
Pressure
Up to 20 Bar Rated
Temperature
-60°C to +225°C
-
Description
Stainless Steel Pressure Reducing Valve. EPDM Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Taper M/M Ends (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Stainless Steel Pressure Reducing Valve. EPDM Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Stainless Steel Safety Valve. PTFE Seal. PED 2014/68/EU.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel Female (ISO 228/1)
Pressure
Up to 70 Bar Rated.
Temperature
-60°C to +225°C
-
Description
Stainless Steel Safety Valve. PTFE Seal. PED 2014/68/EU
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel Male (ISO 228/1)
Pressure
Up to 25 Bar Rated
Temperature
-60°C to +225°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
M/F Threaded Stainless Steel Expansion Joint with SS Mesh.
Stock Availability
Subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1)
Stainless Steel threaded union end and Male endPressure
Up to 25 Bar Rated
Temperature
-15°C to +200°C
-
Description
F/F Threaded Stainless Steel Expansion Joint with SS Mesh.
Stock Availability
Subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1)
Stainless Steel threaded union endPressure
Up to 25 Bar Rated
Temperature
-15°C to +200°C
-
Flanged Stainless Steel Expansion Joint. Available Flanged PN25. Read More
Subject to factory lead time.
Description
Flanged Stainless Steel Expansion Joint. Available Flanged PN25.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16 BS EN1092
Pressure
Up to 16 Bar Rated
Temperature
-80°C to +260°C
-
Flanged Stainless Steel Expansion Joint with tie rods. Available Flanged PN25. Read More
Subject to factory lead time.
Description
Flanged Stainless Steel Expansion Joint with tie rods. Available Flanged PN25.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16 BS EN1092
Pressure
Up to 16 Bar Rated
Temperature
-80°C to +260°C
-
Flanged Stainless Steel Expansion Joint with SS Mesh. Available Flanged PN25. Read More
Subject to factory lead time.
Description
Flanged Stainless Steel Expansion Joint with SS Mesh. Available Flanged PN25.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16 BS EN1092
Pressure
Up to 16 Bar Rated
Temperature
-15°C to +200°C
-
Description
90° Elbow. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
45° Elbow. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See Datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See Datasheet for more information.
-
Description
90° M/F Elbow. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Equal Tee. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Full Socket OD Machined. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information
-
Description
Half Socket OD Machined. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Reducing Socket. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Conical Seat Union. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Flat Faced Union with PTFE Gasket. BSP threads.
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Conical Seat Union Male / Female. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Barrel Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Weld Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Reducing Bush. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Reducing Hexagon Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Square Head Plug. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Head Plug. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hose Adaptor. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Round Cap. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
BSP or NPT
Pressure
Working pressure 150psi
Static pressure 250psi
Max. pressure 400psiTemperature
-73°C to +149°C
