All Parts
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
CE, WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated (¼" to 2")
25 Bar Rated (2½" to 4")
Gas
5 Bar Rated (¼" to 4")
Temperature
Liquids
-20°C to +140°C
Gas
-20°C to +60°C -
Description
PN40 Brass Ball Valve complete with Locking Lever. Full bore.
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated
Gas
5 Bar RatedTemperature
Liquids -20°C to +140°C
Gas
-20°C to +60°C -
Description
PN40 Brass Ball Valve complete with Thermal Extension. Full bore.
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated Gas
5 Bar RatedTemperature
Liquids -20°C to +140°C Gas -20°C to +60°C
-
Description
2 Piece Brass Ball Valve. Full Bore. Tee Handles available in red, yellow, and blue.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
CE, WRAS, EN331 Gas
Pressure
Liquids 40 Bar Rated (¼" to 1") Gas 5 Bar Rated (¼" to 1")
Temperature
Liquids -20°C to +140°C Gas -20°C to +60°C
-
Description
2 Piece DZR Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-20°C to +130°C
-
Description
2 Piece DZR Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
40 Bar Rated
Temperature
-20°C to +130°C
-
Description
Connection
Compression Ends
Approvals/ other
CE, WRAS Approved & EN331 Gas
Pressure
25 Bar Rated - Liquids 5 Bar Rated - Gas
Temperature
-20°C to +110°C - Liquids -20°C to +60°C - Gas
-
Description
DZR Brass Ball Valve. Full Bore.
Connection
Compression Ends (BS EN 1254-2 (1998))
Approvals/ other
Pressure
25 Bar Rated
Temperature
-10°C to +110°C
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
CE, WRAS, EN331 Gas
Pressure
Liquids
40 Bar Rated (¼" to 2")
25 Bar Rated (2½" to 4")
Gas
5 Bar Rated (¼" to 4")Temperature
Liquids
-20°C to +140°C
Gas
-20°C to +60°C -
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
NPT F/F Ends (ANSI B1.20.1)
Approvals/ other
CE Approved
WRAS ApprovedPressure
40 Bar Rated (¼" - 2")
25 Bar Rated (2½" - 4")Temperature
-20°C to +140°C
-
Description
Connection
BSP Parallel M/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-20°C to 140°C
-
Description
Connection
BSP Parallel M/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-20°C to 140°C
-
Description
Locking Device to suit ART 40, 41, 50, 59 & 89 ball valves
Connection
To suit ART 40, 41, 50, 59 & 89
Approvals/ other
Please refer to product catalogue for further information
-
Description
Tee Handle to suit ART 40, 41, 50, 59 and 89. Available in red, yellow, and blue.
Connection
To suit ART 40, 41, 50, 59 and 89.
-
Description
Extended Tee Handle to suit ART 40, 41, 50, 59 and 89 ball valve series
Connection
To suit ART 40, 41, 50, 59 and 89
Approvals/ other
Please refer to product catalogue for further information
-
Description
Thermal Extension to suit ART 40, 41, 50, 59, & 89 ball valves.
Connection
To suit ART 40, 41, 50, 59, & 89.
-
Description
DZR Brass Ball valve. Full Bore. Thermal extension available. 5 year warranty.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M & V Profiles 42mm & 54mmApprovals/ other
CE Approved
WRAS ApprovedPressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-20°C to +140°C
-
Description
Thermal extension for ART 55PRS
Approvals/ other
Please refer to product catalogue for further information
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
32 Bar Rated (¼" to 1") 25 Bar Rated (1¼" to 2") 16 Bar Rated (2½" to 4")
Temperature
-5°C to +110°C
-
Description
Connection
Compression ends in accordance with BS EN1254-2
Approvals/ other
WRAS Approved
Pressure
10 Bar
Temperature
-20°C to +85°C
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved & EN331 Gas Approved
Pressure
See datasheet for full details
Temperature
See datasheet for full details
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Taper F/F End (ISO 7/1)
Approvals/ other
WRAS Approved & EN331 Gas Approved
Pressure
See datasheet for full details
Temperature
See datasheet for full details
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
NPT F/F Ends (ANSI B1.20.1)
Pressure
40 Bar Rated
Temperature
-20°C to +150°C
-
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel M/F Ends (ISO 228/1)
Approvals/ other
Pressure
40 Bar Rated
Temperature
-20°C to +150°C
-
Description
Connection
To suit ART 45
Approvals/ other
Please refer to product catalogue for further information
-
Description
Thermal Extension to suit ART 45
Connection
To suit Art 45
Approvals/ other
Please refer to product catalogue for further information
-
Description
2 Piece Brass Ball Valve. Full Bore.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel M/M Ends (ISO 228/1)
Approvals/ other
Pressure
40 Bar Rated
Temperature
-20°C to +150°C
-
Description
Brass Ball Valve. Full Bore. ISO 5211 Direct Mount.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated (¼" - 1") 32 Bar Rated (1¼") 30 Bar Rated (1½" - 2½") 25 Bar Rated (3")
Temperature
-20°C to +120°C
-
Description
3 Way 'L' Port Brass Ball Valve. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Pressure
32 Bar Rated (¼" - 1") 25 Bar Rated (1¼" - 2")
Temperature
-20°C to +150°C
-
Description
3 Way 'T' Port Brass Ball Valve. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Pressure
32 Bar Rated (¼" - 1") 25 Bar Rated (1¼" - 2").
Temperature
-20°C to +150°C
-
Description
3 Way 'T' Port Brass Ball Valve. PTFE Seals. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Approvals/ other
ISO Direct Mount CE Approved
Pressure
30 Bar Rated (¼" - ¾") 20 Bar Rated (1 - 1¼") 16 Bar Rated (1½" - 2")
Temperature
-20°C to +120°C
-
Description
3 Way 'L' Port Brass Ball Valve. PTFE Seals. Reduced Bore.
Connection
BSP Parallel Female Ends (ISO 228/1)
Approvals/ other
ISO Direct Mount CE Approved
Pressure
30 Bar Rated (¼" - ¾") 20 Bar Rated (1" - 1¼") 16 Bar Rated (1½" - 2")
Temperature
-20°C to +120°C
-
Description
1 Piece Stainless Steel Ball Valve. Reduced Bore. PTFE Seals. Locking lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
69 Bar Rated (¼" - 1¼") 55 Bar Rated (1½" - 2")
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1")
69 Bar Rated (1¼" - 1½")
62 Bar Rated (2")Temperature
-25°C to +200°C
-
Description
2 Piece Stainess Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
NPT F/F Ends (ANSI B1.20.1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2")
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Device. ATEX Approved.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
ATEX Approved.
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
Stainless Steel 2 piece ball valve. Full Bore. PTFE Seals. Locking device. ATEX Approved.
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
ATEX Approved
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
2 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Device. ATEX Approved.
Connection
NPT F/F Ends (ANSI B 1.20.1)
Approvals/ other
ATEX Approved.
Pressure
140 Bar Rated
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
(Butt Weld and Socket Weld Ends available upon request)Approvals/ other
Pressure
82 Bar Rated (1/4" - 1") 69 Bar Rated (1.1/4" - 1.1/2") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
Socket Weld Ends
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Carbon Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever.
Connection
BSP Taper F/F Ends (ISO 7/1)
(Butt Weld and Socket Weld Ends available upon request)Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 3")
Temperature
-25°C to +200°C
-
Description
3 Piece Stainless Steel Ball Valve. Full Bore. PTFE Seals. Locking Lever. ISO5211 Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated 2" - 4")
Temperature
-25°C to +200°C
-
DN76+ subject to factory lead time.
Description
Stainless Steel 3 Piece Press Ball Valve ISO5211. Dedicated M profile. Full bore. Locking device.
Stock Availability
DN76+ subject to factory lead time.
Connection
Press
Pressure
24 Bar (15mm), 20 Bar (22mm & 28mm), 17 Bar (35mm -54mm), 10 Bar (76mm - 108mm)
Temperature
-20°C to +120°C
-
Description
Connection
Taper F/F Ends (ISO 7/1)
Approvals/ other
Atex Approved.
TUV Certified to API STD 607.Pressure
Up to 140 Bar
Temperature
-25°C to +200°C
-
Description
Connection
NPT F/F Ends (ANSI B 1.20.1)
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
Up to 140 Bar Rated
Temperature
-25°C to +200°C.
-
Description
Connection
Flanged PN16/40
Approvals/ other
Pressure
40 Bar Rated (½" - 2") 16 Bar Rated (2½" - 8")
Temperature
-25°C to +200°C (½" to 4") -25°C to +180°C (5" to 8")
-
Description
Connection
Flanged PN16
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
40 Bar Rated (½-2") 16 Bar Rated (2½- 4")
Temperature
-25°C to +200°C
-
Description
Connection
Flange Mounting ANSI Class 150 (B16.5)
Approvals/ other
Pressure
20 Bar Rated
Temperature
-25°C to +200°C
-
Description
Connection
Flange Mounting ANSI Class 150 (B16.5)
Approvals/ other
ATEX Approved.
TUV Certified to API STD 607.Pressure
20 Bar Rated.
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'T' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description
PN82 Stainless Steel 'L' Port Ball Valve. Reduced Bore. PTFE / Viton Seals. ISO Direct Mount.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1") 69 Bar Rated (1¼" - 1½") 62 Bar Rated (2" - 4")
Temperature
-25°C to +200°C
-
Description

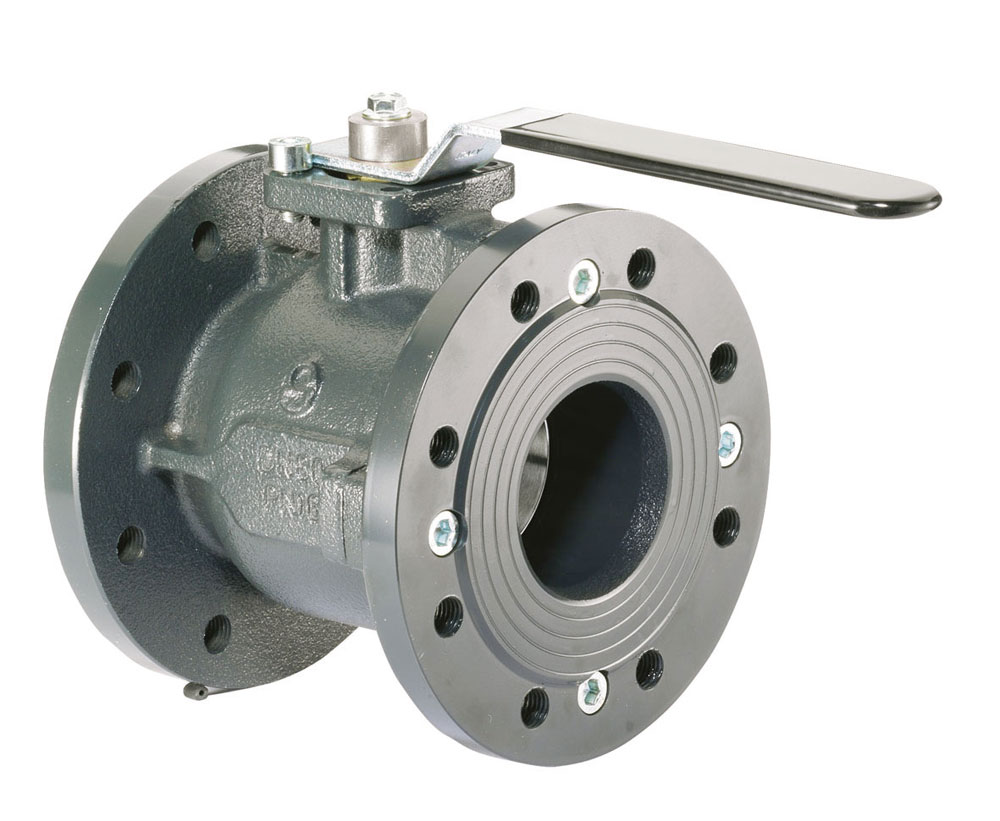

Cast Iron Ball Valve. Anti-blow-out stem. Approved to EN13774 (gas distribution).
Connection
Flanged mounting to PN16
Pressure
16 Bar Rated
Temperature
-10°C to +60°C
-
Description
Connection
Flange Mounting PN16 Only
Pressure
Up to 16 Bar
Temperature
-20°C to +150°C
-
Description
Connection
Flanged Ends
Pressure
Up to 16 Bar.
Temperature
-10°C to +150°C
-
Description
2 Piece Bronze Ball Valve. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE
Pressure
40 Bar Rated
Temperature
-10°C to +140°C
-
PN40 Bronze Ball Valve. Bronze Body. Full Bore. Blow Out Proof Stem. MSS-SP-110. Read More
Not stocked in the UK.
Description
PN40 Bronze Ball Valve. Bronze Body. Full Bore. Blow Out Proof Stem. MSS-SP-110.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
40 Bar Rated
Temperature
-10°C to +140°C
-
Description
Ductile Iron Lugged and Tapped Butterfly Valves. EPDM Liner. Stainless Steel Disc. ISO Top.
Connection
To suit PN16 Flanges
Approvals/ other
CE, WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Description
Ductile Iron Lugged and Tapped Butterfly Valves with gearbox. EPDM Liner. Stainless Steel Disc.
Connection
To suit PN16 Flanges
Approvals/ other
CE and WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
DN500 & DN600 subject to factory lead time.
Description
Ductile Iron Lugged and Tapped Butterfly Valves with gearbox. EPDM Liner. Stainless Steel Disc.
Stock Availability
DN500 & DN600 subject to factory lead time.
Connection
To suit PN16 Flanges
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Description
Connection
To suit PN25 Flanges
Pressure
25 Bar Rated
Temperature
-10°C to +110°C
-
Description
Connection
To suit PN25 Flanges
Pressure
25 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
ANSI 150 Ductile Iron Lugged and Tapped Butterfly Valves. EPDM Liner. Stainless Steel Disc. ISO Top.
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting ANSI Class 150 (B16.42)
Approvals/ other
CE and WRAS Approved
Pressure
17.2 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
ANSI 150 Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel Disc.
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting ANSI Class 150 (B16.42)
Approvals/ other
CE and WRAS Approved
Pressure
17.2 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
ANSI 150 Ductile Iron Lugged and Tapped Butterfly Valves with gearbox. EPDM Liner. Stainless Steel Disc.
Stock Availability
Subject to factory lead time.
Connection
Flanged mounting ANSI Class 150
Approvals/ other
CE Approved
Pressure
17.2 Bar Rated
Temperature
-10°C to +110°C
-
Description
Connection
Lugged and Tapped
Pressure
16 Bar Rated.
Temperature
-10°C to +110°C
-
Description
Ductile Iron Lugged and Tapped Butterfly Valve. EPDM Liner. Stainless Steel disc.
Connection
Lugged and Tapped
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
25 Bar Rated.
Temperature
0°C to +110°C
-
Subject to factory lead time.
Description
Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
25 Bar Rated
Temperature
0°C to +110°C
-
Subject to factory lead time.
Description
Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Stainless Steel disc.
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
25 Bar Rated
Temperature
0°C to +110°C
-
Description
Connection
Lugged and Tapped
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
0°C to +90°C
-
Description
Connection
Lugged and Tapped
Pressure
16 Bar Rated
Temperature
0°C to +90°C
-
Description
Ductile Iron Wafer Butterfly Valve. EPDM Liner. Stainless Steel Disc. ISO Top.
Connection
Wafer to suit PN10, PN16 & ANSI 150 Flanges
Approvals/ other
CE, WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Description
Ductile Iron Wafer Butterfly Valve with gearbox. EPDM Liner. Stainless Steel Disc.
Connection
Wafer to suit PN10, PN16 & ANSI 150 Flanges
Approvals/ other
CE and WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Ductile Iron Wafer Butterfly Valve with gearbox. EPDM Liner. Stainless Steel Disc. Read More
Subject to factory lead time.
Description
Ductile Iron Wafer Butterfly Valve with gearbox. EPDM Liner. Stainless Steel Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer to suit PN10, PN16 & ANSI 150 Flanges
Approvals/ other
CE Approved.
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
PN25 Ductile Iron Butterfly Valve Wafer Type. EPDM Liner. Stainless Steel Disc. ISO Top. Read More
Subject to factory lead time.
Description
PN25 Ductile Iron Butterfly Valve Wafer Type. EPDM Liner. Stainless Steel Disc. ISO Top.
Stock Availability
Subject to factory lead time.
Connection
Flange mounting PN25 only
Pressure
25 Bar Rated
Temperature
-10°C to +110°C
-
PN25 Ductile Iron Butterfly Valve Wafer Type. EPDM Liner. Stainless Steel Disc. Read More
Subject to factory lead time.
Description
PN25 Ductile Iron Butterfly Valve Wafer Type. EPDM Liner. Stainless Steel Disc.
Stock Availability
Subject to factory lead time.
Connection
Flange mounting PN25 only
Pressure
25 Bar Rated
Temperature
-10°C to +110°C
-
Description
Connection
Wafer
Pressure
Up to 16 Bar
Temperature
-10°C to +110°C
-
Description
Connection
Universal Flange Mounting PN16 PN10 ASA150
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Description
Connection
Universal Flange Mounting PN16 PN10 ASA150
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Ductile Iron Butterfly Valve Wafer Type. Available from 2" to 6". EPDM Liner. Stainless Steel Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
25 Bar Rated
Temperature
0°C to +110°C
-
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc. Read More
Subject to factory lead time.
Description
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
25 Bar Rated
Temperature
0°C to 110°C
-
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc. Read More
Subject to factory lead time.
Description
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Stainless Steel Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
25 Bar Rated
Temperature
0°C to 110°C
-
Description
Ductile Iron Wafer Butterfly Valve. NBR Liner. Stainless Steel Disc. ISO Top.
Connection
Wafer to suit PN10, PN16 & ANSI 150 Flanges
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
-10°C to +90°C
-
Description
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 only.
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 only.
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Ductile Iron Wafer Butterfly Valve. EPDM Liner. Ductile Iron / Nickel Plated Disc. ISO Top Read More
Description
Ductile Iron Wafer Butterfly Valve. EPDM Liner. Ductile Iron / Nickel Plated Disc. ISO Top
Connection
Wafer PN10 PN16 & ASA 150 Flanges
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
-20°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Ductile Iron Lugged and Tapped Butterfly Valve with gearbox. EPDM Liner. Ductile Iron disc.
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
25 Bar Rated.
Temperature
0°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
25 Bar Rated
Temperature
0°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Lugged and Tapped
Pressure
25 Bar Rated
Temperature
0°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
16 Bar Rated
Temperature
-10°C to 110°C
-
Subject to factory lead time.
Description
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
16 Bar Rated
Temperature
-10°c to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
25 Bar Rated
Temperature
0°C to +110°C
-
Subject to factory lead time.
Description
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
25 Bar Rated
Temperature
0°C to 110°C
-
Subject to factory lead time.
Description
Ductile Iron Butterfly Valve Wafer Type with gearbox. EPDM Liner. Nickel Plated Ductile Iron Disc.
Stock Availability
Subject to factory lead time.
Connection
Wafer
Pressure
25 Bar Rated
Temperature
0°C to 110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Double Flanged
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Double Flanged
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Double Flanged
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Description
PN20 DZR Brass Gate Valve. Full Bore. Handwheel Operation.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
BS 5154 Approved
WRAS ApprovedPressure
20 Bar Rated
Temperature
-20°C to +170°C
-
Description
PN20 DZR Brass Gate Valve. Full Bore. Lockshield - Key available separately.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
BS 5154 Approved
WRAS ApprovedPressure
20 Bar Rated
Temperature
-20°C to +170°C
-
Description
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
BS 5154 Approved
Pressure
20 Bar Rated
Temperature
-20°C to +170°C
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
BS 5154 Approved & Kite Marked
Pressure
25 Bar Rated
Temperature
-10°C to +186°C
-
Description
Connection
Compression Ends
Approvals/ other
BS 5154 Approved
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Description
Brass Gate Valve. Reduced Bore.
Connection
BSP Parallel F/F Ends
Pressure
16 Bar Rated
Temperature
-20°C to +110°C
-
Description
Bronze Gate Valve. Handwheel Operated. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved & BS 5154 Approved
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Description
Bronze Gate Valve. Lockshield. Full Bore.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved & BS 5154 Approved
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Description
Stock Availability
Subject to factory lead time.
Connection
F/F BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
BS 5154
Pressure
20 Bar Rated.
Temperature
-20°C to +232°C
-
Description
Flanged Bronze Gate Valve. Full Bore.
Connection
Drilled PN16 (Undrilled on request)
Approvals/ other
CE Approved
Pressure
16 Bar Rated (½ - 4")
10 Bar Rated (5 - 6")Temperature
-10°C to +170°C (½ - 4")
-10°C to +150°C (5 - 6") -
Not stocked in the UK.
Description
PN20 Bronze Gate Valve. Bronze Body and Disc. Screwed Bonnet. Non Rising Stem. BS 5154 / MSS-SP-80.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Description
Stainless Steel Gate Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Cast Iron PN16 Gate Valve. Bronze Trim. Stainless Steel Stem. Read More
Sizes 14"+ subject to factory lead time.
Description
Cast Iron PN16 Gate Valve. Bronze Trim. Stainless Steel Stem.
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flanged PN16
Approvals/ other
BS 5150
CE ApprovedPressure
16 Bar Rated
Temperature
-10°C to +230°C
-
Description
PN25 Cast Iron Gate Valve. Non rising stem.
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN25 Only
Pressure
25 Bar Rated
Temperature
-10°C to +230°C
-
Subject to factory lead time.
Description
Cast Iron Gate Valve. Class 125 Rated. Non rising stem. Conforms to ASME B16.10 & MSS SP-70.
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125 (B16.1)
Pressure
13.8 Bar Rated
Temperature
-10°C to +230°C
-
Description
Ductile Iron PN16 Flanged Gate Valve. Brass Trim. Stainless Steel Stem.
Connection
Flanged PN16
Approvals/ other
EN1171
CE ApprovedPressure
16 Bar Rated
Temperature
-10°C to +200°C
-
Description
Cast Iron Flanged Gate Valve. Bronze Trim. Stainless Steel Stem.
Connection
Flanged Table E & D
Approvals/ other
BS 3464
Pressure
10 Bar Rated
Temperature
-10°C to +230°C
-
Description
PN25 Cast Iron Rising Stem Gate Valve
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN25 Only
Pressure
25 Bar Rated
Temperature
-10°C to +230°C
-
Description
ANSI 125 Cast Iron Rising Stem Gate Valve
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125 (B16.1)
Pressure
13.8 Bar Rated
Temperature
-10°C to +230°C
-
Description
PN16 Cast Iron Rising Stem Gate Valve
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting to PN16 Only
Pressure
16 Bar Rated
Temperature
-10°C to +230°C
-

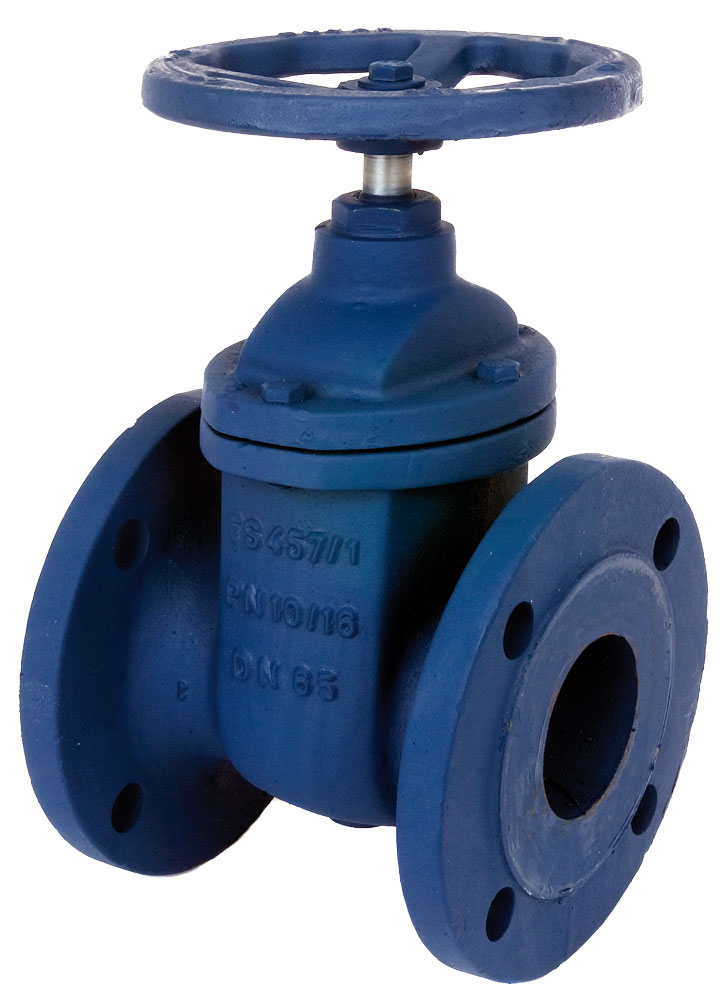

Sizes 14"+ subject to factory lead time.
Description
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flange mounting to EN1092-2 PN16
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
PN25 Ductile Iron Resilient Seat Gate Valve. BS5163, Type B cover and stem. Internally and externally fusion bonded epoxy coated WRAS approved.
Stock Availability
Subject to factory lead time.
Connection
Flange mounting to EN1092-2 PN25
Pressure
25 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
ANSI 150 Ductile Iron Resilient Seat Gate Valve. BS5163, Type B cover and stem. Internally and externally fusion bonded epoxy coated WRAS approved.
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting to ANSI 150 (B16.42)
Pressure
17.2 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Underground / Buried Resilient Seated Gate Valve with Extension. Available in PN10 and PN16.
Stock Availability
Subject to factory lead time.
Connection
Flanged Mounting to EN1092-2 PN10 / PN16
Approvals/ other
WRAS Approved
Pressure
Up to 16 Bar Rated
Temperature
0°C to +80°C
-
-
-
-
Description
Bronze Globe Valve. Renewable PTFE Seat.
Connection
BSP Taper F/F Ends (ISO 7/1)
Approvals/ other
BS 5154 Approved
CE ApprovedPressure
32 Bar Rated
Temperature
-10°C to +200°C
-
Description
PN16 Bronze Globe Valve. Available in BSP or NPT.
Stock Availability
Subject to factory lead time.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
0°C to 232°C
-
Description
Flanged Bronze Globe Valve. PTFE Seat.
Stock Availability
Subject to factory lead time.
Connection
Drilled PN16 (Undrilled on request)
Pressure
16 Bar Rated
Temperature
-10°C to +170°C
-
PN20 Bronze Globe Valve. Bronze Body. Screwed Bonnet. BS 5154 / MSS-SP-80. Read More
Not stocked in the UK.
Description
PN20 Bronze Globe Valve. Bronze Body. Screwed Bonnet. BS 5154 / MSS-SP-80.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +180°C
-
Description
Stainless Steel Globe Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Description
PN16 Cast Iron Globe Valve. Bronze Trim. Stainless Steel Stem.
Connection
Flange Mounting PN16 only
Approvals/ other
BS EN558-1 Series 10 Conforms to BS5152
CE ApprovedPressure
16 Bar Rated
Temperature
-10°C to +230°C
-
ANSI 125 Cast Iron Globe Valve. Conforms to ASME B16.10 & MSS SP-85. Read More
Subject to factory lead time.
Description
ANSI 125 Cast Iron Globe Valve. Conforms to ASME B16.10 & MSS SP-85.
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125 (B16.1)
Pressure
13.8 Bar Rated
Temperature
-10°C to +230°C
-
Description
Brass Swing Check Valve. Metal Seat.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Pressure
20 Bar Rated
Temperature
0°C to +150°C
-
Description
Brass Swing Check Valve. Rubber Seat.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Pressure
20 Bar Rated
Temperature
0°C to +100°C
-
Description
Brass Spring Check Valve. Brass Disc. NBR Seat.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
0°C to +100°C
-
Description
Connection
BSP Parallel Male End
Pressure
16 Bar Rated (½" - 1"), 10 Bar Rated (1¼" - 2"), 8 Bar Rated (2½ - 4")
Temperature
0°C to +90°C
-
Description
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated (½" - 1")
10 Bar Rated (1¼" - 2")
8 Bar Rated (2½" - 4")Temperature
0°C to +90°C
-
Description
Connection
F/F BSP Parallel (ISO 228/1)
Pressure
16 Bar Rated
Temperature
Max Working Temp: +85°C
-
Description
Connection
Compression Ends (EN1254-2)
Approvals/ other
Conforms with EN13959
Pressure
10 Bar Rated
Temperature
Max Working Temp: +85°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Conforms with EN13959.Pressure
16 Bar Rated
Temperature
-10°C to +85°C
-
Description
Connection
Compression Ends
Approvals/ other
WRAS Approved.
Conforms with EN13959Pressure
10 Bar Rated
Temperature
-10°C to +85°C
-
Description
WRAS Approved Double Check Valve. Operates in any position. WRAS Approved as a non-return valve.
Connection
PN16 Flanged
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C - +85°C
-
Description
WRAS Approved Double Check Valve. Operates in any position. WRAS Approved as a non-return valve.
Connection
PN16 Flanged
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C - +23°C
-
Description
DZR Brass Swing Check Valve. EPDM Seat.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
DZR Brass Swing Check Valve. EPDM Seat.
Pressure
16 Bar Rated
Temperature
-10°C to +150°C
-
Description
Bronze Swing Check Valve. Metal Seat.
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Description
Bronze Lift Check Valve. PTFE Seat
Connection
BSP Parallel F/F Ends (ISO 228/1)
Pressure
20 Bar Rated (3/8 - 2"), 16 Bar Rated (2½ - 4")
Temperature
-10°C to +180°C (3/8 - 2"), -10°C to +170°C (2½ - 4")
-
Description
Flanged Bronze Lift Check Valve. PTFE Seat.
Stock Availability
Subject to factory lead time.
Connection
Drilled PN16 (Undrilled on request)
Pressure
16 Bar Rated
Temperature
-10°C to 170°C
-
Not stocked in the UK.
Description
PN20 Bronze Check Valve. Bronze Body and Disc. EPDM Seat. BS 5154 (BS EN 12288) / MSS-SP-80.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +150°C
-
Description
PN40 Stainless Steel Dual Plate Wafer Check Valve. Viton seat. PN40 rated.
Connection
Wafer Pattern to PN10, 16, 25 & 40 & ANSI 150 & 300 Flanges
Pressure
40 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel Disc Wafer Check Valve. 'O' Ring Viton.
Connection
Wafer Pattern to suit PN16 & ANSI 150 Flanges
Approvals/ other
ATEX Approved "O" Ring Viton.
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel Spring Wafer Check Valve
Connection
Wafer pattern to suit PN10, 16, 40 & ANSI 150 & 300 Flanges
Approvals/ other
ATEX Approved Metal Seat
Pressure
40 Bar Rated
Temperature
-25°C to +200°C
-
Description
Stainless Steel Swing Check Valve. Metal Seat.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
16 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel Spring Check Valve. Metal Seat.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
82 Bar Rated (¼" - 1"), 69 Bar Rated (1¼" - 1½"), 62 Bar Rated (2" - 4")
Temperature
-25°C to +180°C
-
Cast Iron PN16 Flanged Swing Check Valve. Bronze Trim Read More
Sizes 14"+ subject to factory lead time.
Description
Cast Iron PN16 Flanged Swing Check Valve. Bronze Trim
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flanged PN16
Approvals/ other
BS EN12334 (BS 5153)
CE ApprovedPressure
16 Bar Rated
Temperature
-10°C to +230°C
-
Description
PN25 Cast Iron Swing Check Valve
Connection
Flange Mounting to PN25 Only
Pressure
25 Bar Rated
Temperature
-10°C to +230°C
-
ANSI Cast Iron Flanged Swing Check Valve. Conforms to ASME B16.10 and MSS SP-71. Read More
Subject to factory lead time.
Description
ANSI Cast Iron Flanged Swing Check Valve. Conforms to ASME B16.10 and MSS SP-71.
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125 (B16.1)
Pressure
13.8 Bar Rated
Temperature
-10°C to +230°C
-
Description
Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.
Connection
Universal flange mounting to suit BS EN 1092 PN10/PN16 and ANSI B16.1 Class 125
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat. Read More
Subject to factory lead time.
Description
Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.
Stock Availability
Subject to factory lead time.
Connection
Flange mounting to suit BS EN 1092 PN16 only
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat. Read More
Subject to factory lead time.
Description
Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.
Stock Availability
Subject to factory lead time.
Connection
Flange mounting to suit ANSI B16.1 Class 125
Pressure
13.8 Bar Rated
Temperature
-10°C to +120°C
-
Description
Cast Iron Dual Plate Wafer Check Valve. Stainless Steel Disc. EPDM Seat.
Connection
Universal flange mounting to suit BS EN1092 PN10 / PN16 and ANSI B16.1 Class 125
Pressure
16 Bar Rated
Temperature
-10°C to 120°C
-10°C to +85°C (WRAS Applications) -
Description
Ductile Iron PN16 Ball Check Valve. NBR Seals. NBR Coated. Aluminium Ball
Connection
BSP Parallel F/F End (ISO 228/1)
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
-10°C to +80°C
-
Description
Ductile Iron PN16 Ball Check Valve. NBR Seals.
Connection
Flanged Mounting PN16 only
Approvals/ other
EN12334
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Description
PN16 Ductile Iron Silent Check Valve
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN1092 PN16
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
PN16 Cast Iron Swing Check Valve, Lever & Weight
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 Only
Pressure
16 Bar Rated
Temperature
-10°C to +230°C
-
Description
PN25 Cast Iron Swing Check Valve, Lever & Weight
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting to PN25 Only
Pressure
25 Bar Rated
Temperature
-10°C to +230°C
-
Description
ANSI Cast Iron Swing Check Valve, Lever & Weight
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125 (B16.1)
Pressure
13.8 Bar Rated
Temperature
-10°C to +230°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged - Conforms to BS EN1092 PN16
Pressure
16 Bar Rated
Temperature
-10°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged - Conforms to BS EN1092 PN25
Pressure
25 Bar Rated
Temperature
-10°C to +80°C
-
Description
Brass Y Type Strainer. Stainless Steel Screen.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
0°C to +150°C
-
Description
DZR Brass Y Type Strainer. EPDM Seat.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
CE Approved
5 year warranty.Pressure
20 Bar Rated (DN15 to DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +150°C
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Description
Connection
Screwed BSP Taper (ISO 7/1)
NPT (ANSI B1.20.1) version available on request.Pressure
32 Bar Rated
Temperature
-10°C to +200°C
-
Not stocked in the UK.
Description
PN20 Bronze 'Y' Strainer. Bronze Body. Stainless Steel Strainer Basket. Tested to BS EN 12266.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Sizes DN350+ are subject to factory lead time.
Description
Stock Availability
Sizes DN350+ are subject to factory lead time.
Connection
Flange Mounting PN16 Only
Approvals/ other
DN50-DN300 WRAS Approved
DN350-DN600 WRAS Approved CoatingPressure
16 Bar Rated
Temperature
-10°C to +85°C
-
Sizes DN350+ are subject to factory lead time.
Description
Stock Availability
Sizes DN350+ are subject to factory lead time.
Connection
Flanged PN16 - Conforms to BS EN1092 PN16
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
-10°C to +230°C
-
Description
Flanged ANSI 125 Cast Iron 'Y' Strainer.
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125
Pressure
13.8 Bar Rated
Temperature
-10°C to +232°C
-
Description
PN25 Ductile Iron "Y" Strainer.
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flange Mounting PN25 Only.
Pressure
25 Bar Rated.
Temperature
-10°C to +230°C
-
Description
Stainless Steel 'Y' Type Strainer. 1mm/1000 Micron Mesh.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Pressure
55 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel 'Y' Type Strainer Flanged PN16. ½" - 2" 1mm Mesh 2½" - 8" 2mm Mesh
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-25°C to +200°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 Only. Flange conforms to BS EN1092 PN16
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 150 (B16.42). Conforms to ANSI B16.10
Pressure
17.2 Bar Rated
Temperature
0°C to +80°C
-
Description
Brass Drain Cock. Screwed Male BSP Parallel (ISO 228/1). BS 2879/2 Type A. Hose Connection Outlet.
Connection
Screwed Male BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar
Temperature
-20°C to +90°C
-
Description
Brass Drain Cock. Male Spigot. BS 2879/2 Type A. Hose Connection Outlet.
Connection
Male Spigot
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +90°C
-
Description
Brass Drain Cock. Extended Male Spigot. BS 2879/2 Type A. Hose Connection Outlet.
Connection
Extended Male Spigot
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +90°C
-
Description
Connection
Screwed Male BSP Taper (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
Description
Bronze Drain Cock (Lockshield)
Connection
Screwed Male BSP Taper (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
Description
Drain Ball Valve. Tested to EN12266-1. 5 Year Guarantee.
Connection
BSP Parallel Male Ends (ISO 228/1) x Hose Connection
Pressure
Nominal Pressure : 16 bar
Max. Pressure: 20 Bar (0°C to 40°C)Temperature
-20°C to +90°C
-
Description
DZR Brass Ball Valve. Full Bore. Thermal extension available. 5 year warranty.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M & V Profile 42mm & 54mmApprovals/ other
CE Approved
WRAS ApprovedPressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-20°C to +140°C
-
Sizes 15L and 15ML subject to factory lead time.
Description
Stock Availability
Sizes 15L and 15ML subject to factory lead time.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 year warranty
Pressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
0°C to +120°C
-
Size 15L is subject to a factory lead time.
Description
Stock Availability
Size 15L is subject to a factory lead time.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 year warranty
Pressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +120°C
-
Description
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 Year Guarantee
Pressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +120°C
-
Description
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 year warranty
Pressure
20 Bar Rated (DN15 to DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +120°C
-
DN76+ subject to factory lead time.
Description
Stainless Steel 3 Piece Press Ball Valve ISO5211. Dedicated M profile. Full bore. Locking device.
Stock Availability
DN76+ subject to factory lead time.
Connection
Press
Pressure
24 Bar (15mm), 20 Bar (22mm & 28mm), 17 Bar (35mm - 54mm), 10 Bar (76mm - 108mm)
Temperature
-20°C to +120°C
-
Description
DZR Brass Swing Check Valve. EPDM Seat.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 year warranty
Pressure
16 Bar Rated
Temperature
-10°C to +150°C
-
Description
DZR Brass Y Type Strainer. EPDM Seat.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
CE Approved
5 year warranty.Pressure
20 Bar Rated (DN15 to DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +150°C
-
Description
Connection
BSP Parallel (ISO 228 Threads) F/F Ends
Approvals/ other
WRAS Approved
Pressure
25 Bar
Temperature
-10°C to +120°C
-
Sizes 15L and 15ML subject to factory lead time.
Description
Stock Availability
Sizes 15L and 15ML subject to factory lead time.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 year warranty
Pressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
0°C to +120°C
-
Description
DZR Double Regulating Valve (DRV)
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
Up to 25 Bar.
Temperature
-10°C to +120°C
-
Size 15L is subject to a factory lead time.
Description
Stock Availability
Size 15L is subject to a factory lead time.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 year warranty
Pressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +120°C
-
Description
DZR Brass Fixed Orifice Double Regulating Valve. EPDM Seat
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
5 Year Guarantee
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
DZR Brass Fixed Orifice Double Regulating Valve. EPDM Seat. Conforms to BS 5154.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 Year Guarantee
Pressure
24 Bar Rated (DN15), 20 Bar Rated (DN22 & DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +120°C
-
Description
DZR Brass Double Regulating Valve. EPDM Seat. Low flow version available in ½"
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
5 Year Guarantee
Pressure
20 Bar Rated
Temperature
-10°C to +120°C
-
Description
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
5 year warranty
Pressure
20 Bar Rated (DN15 to DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +120°C
-
Description
DZR Brass Variable Orifice Double Regulating Valve. EPDM Seat. Conforms to BS 7350 / BS 5154.
Connection
BSP Parallel F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
5 Year GuaranteePressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
PN16 Ductile Iron Double Regulating Valve. EPDM Seat. C/W Ext & Test Points. Read More
Subject to factory lead time.
Description
PN16 Ductile Iron Double Regulating Valve. EPDM Seat. C/W Ext & Test Points.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
PN25 Ductile Iron Double Regulating Valve (DRV) Read More
DN250 & DN300 subject to factory lead time.
Description
PN25 Ductile Iron Double Regulating Valve (DRV)
Stock Availability
DN250 & DN300 subject to factory lead time.
Connection
Flanged Mounting PN25 Only
Pressure
25 Bar Rated
Temperature
-20°C to +120°C
-
Description
ANSI Ductile Iron Double Regulating Valve (DRV)
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125 (B16.1)
Pressure
17.2 Bar Rated
Temperature
-20°C to +120°C
-
Description
Flanged Fixed Orifice Double Regulating Valve (FODRV). Conforms to BS 5152 / BS 7350.
Connection
Flanged PN16
Pressure
16 Bar
Temperature
-20°C to +120°C
-
Description
Connection
BSP Parallel (½") Taper (¾ - 2") M/F Ends (ISO 7/1)
Approvals/ other
5 Year Guarantee
Pressure
20 Bar Rated
Temperature
-10°C to +120°C
-
PN16 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points. Read More
Sizes DN300+ are subject to factory lead time.
Description
PN16 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points.
Stock Availability
Sizes DN300+ are subject to factory lead time.
Connection
Wafer pattern. Fits between BS EN1092 flanged PN16.
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
PN25 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points.
Connection
Wafer pattern. Fits between BS EN1092 flanges PN25
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
ANSI Stainless Steel Orifice Plate (OP)
Stock Availability
Subject to factory lead time.
Connection
Wafer pattern. Fits between ANSI 150 flanges.
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
Spare Test Point Set of two, one red tab, one blue tab.
Connection
BSP Taper
Pressure
35 Bar Rated
Temperature
-10°C to +135°C
-
Description
Spare Test Point Set of two, one red tab, one blue tab C/W Stainless Steel Extension
Pressure
16 Bar Rated
25 Bar Rated option also availableTemperature
-10°C to +120°C
-
Description
Thermostatic Balancing Valve with Anti Legionella Device. WRAS Approved. Fluid: Water. Automatic legionella disinfectant feature. Improves efficiency of DHW systems. Automatic regulation. Reduces heat loss through lower circulation of hot water. Helps to keep temperature evenly distributed and reduces dead-legs.
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
Max working pressure (Static): 25 Bar
Temperature
Working temperature: 40°C to 60°C
Max Inlet temperature: 90°C
Anti Legionella temperature: 70°C -
Description
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
5 Year Guarantee
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
DZR Pressure Independent Control and Balancing Valve (PICV)
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
5 Year Guarantee
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Control Actuator to fit PICV ART DN15-50. Manual Override. IP 54 Rated.
Connection
M30 x 1.5 Swivel knurled Nut Assembly
Approvals/ other
Manual OverrideI P54 rated
-
Description
Connection
Flanged to ISO 7005-2 / EN 1092-2
Pressure
16 Bar Rated
Max differential pressure: 800kPa (8 Bar)Temperature
0°C to +120°C
With stem heater mounted: From -10°C -
-
Spring Return Control Actuator to suit ART 202 PICV DN50-300. Read More
Subject to factory lead time.
Description
Spring Return Control Actuator to suit ART 202 PICV DN50-300.
Stock Availability
Subject to factory lead time.
Temperature
-10°C to +50°C
-
Description
DZR Automatic Flow Balancing Valve
Stock Availability
Subject to factory lead time.
Connection
Threaded BSP Parallel (ISO 7/1)
Approvals/ other
5 Year Guarantee
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Ductile Iron Automatic Flow Balancing Valve
Stock Availability
Subject to factory lead time.
Connection
Wafer Pattern
Approvals/ other
5 Year Guarantee
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
Description
Connection
BSP Female x Union Solder
Pressure
Max Pressure: 20 Bar
Differential Pressure: 800kPa (8 Bar)Temperature
0°C to +120°C
-
Description
Connection
BSP Female x Union Solder
Pressure
Max Pressure: 20 Bar
Differential Pressure: 800kPa (8 Bar)Temperature
0°C to +120°C
-
Description
Pressure
Max Pressure: 25 Bar Maximum Differential Pressure: 800kPa (8 Bar)
Temperature
0°C to +120°C
-
Description
H Block complete with FODRV. For heating and cooling applications at 80mm centres.
Pressure
Max Pressure: 25 Bar Maximum Differential Pressure: 800kPa (8 Bar)
Temperature
0°C to +120°C
-
Description
Connection
Screwed BSP F x Union male
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
DZR Brass H Block with ART 25. Tested in accordance with EN12266-1:2012. 5 year guarantee. Read More
Description
DZR Brass H Block with ART 25. Tested in accordance with EN12266-1:2012. 5 year guarantee.
Connection
Screwed BSP Connections.
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Connection
Screwed BSP Connections.
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Connection
Screwed BSP Connections.
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
DZR Brass H Block with ART 22. Tested in accordance with EN12266-1:2012. 5 year guarantee. Read More
Description
DZR Brass H Block with ART 22. Tested in accordance with EN12266-1:2012. 5 year guarantee.
Connection
Screwed BSP Connections.
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Connection
Screwed BSP Connections.
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Connection
Screwed BSP Connections.
Pressure
25 Bar Rated
Temperature
-10°C to +120°C
-
Description
Connection
BSP Parallel (ART 24 - ISO 228/1. ART 28DP - ISO 7/1).
Approvals/ other
5 year guarantee
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
PN16 DPCV (ART 24C), Partner Valve (ART 28DP), and Impulse tube connection (ART 24IT1M /ART 24IT2M). Supplied as shown with fitting and measuring nipples. Handwheel shut-off function and clear 360° reading. Allen key locking mechanism enabling valve to be closed and re-opened to its exact pre-set position. Conforms to BS 7350 / BS 5154.
ART 24C bimstore link - https://www.bimstore.co/products/art-24c-dpcv-partner-valve
ART 28DP bimstore link - https://www.bimstore.co/products/art-28dpConnection
BSP Parallel (ART 24C - ISO 228/1. ART 28DP - ISO 7/1).
Approvals/ other
5 year guarantee
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Copper Impulse capillary tube for ART 24 and ART 24C Differential Pressure Control Valves. Read More
Description
Copper Impulse capillary tube for ART 24 and ART 24C Differential Pressure Control Valves.
Connection
Thread incl. 2 x ART 24VF
Approvals/ other
Available in 1 or 2m lengths, G 1⁄8"
-
Description
Connection
Flanged to ISO 7005-2 / EN 1092-2
Pressure
16 Bar Rated (Also available 25 Bar Rated)
Max differential pressure: 100kPaTemperature
DN50-125: -10°C to +120°C
DN150-200: -10°C to +110°C -
Description
Differential Pressure Control Valve (DPCV)
Connection
PN16 Flanged
Pressure
16 Bar Rated
Temperature
-10°C to +120°C
-
Description
Copper Impulse capillary tube for Art 241 Differential Pressure Control Valve.
Connection
¼" MFF Fitting
Approvals/ other
Binder Test Point
4mm 2m length copper tube and compression fittings -
Description
Compression Thermostatic Mixing Valve (TMV)
Connection
Compression Ends.
Approvals/ other
WRAS Approved.
Pressure
10 Bar (Static), 5 Bar (Dynamic)
Temperature
Temp Adjustment Range: +30°C to +48°C
-
Description
Thermostatic Mixing Valve complete with isolation valves.
Connection
Compression Ends.
Approvals/ other
WRAS Approved.
Pressure
10 Bar (Static), 5 Bar (Dynamic)
Temperature
Temp Adjustment Range: +30°C to +48°C
-
Description
Screwed Thermostatic Mixing Valve (TMV)
Stock Availability
Subject to factory lead time.
Connection
NPT
Pressure
Max Supply Pressure: 125psi
Temperature
Temp Adjustment Range: +30°C to +49°C
-
Description
Brass 3 Port Rotary Mixing/Diverting Control Valve
Connection
Internal Thread Rp in accordance with EN 10226-1 (ISO 7/1)
DN15-50 fast CLIP system installationPressure
10 Bar Rated
Temperature
-10°C to +110°C
-
Description
Connection
Flanged ISO 7005
Pressure
Max 6 Bar (PN6)
Temperature
-10°C to +110°C
-
Description
Connection
DN15-50 fast CLIP system installation
Pressure
Max Torque 15Nm
-
Description
Connection
AK41 Actuator mounting kit for Esbe, Danfoss, Siemens & Honeywell Valves
AK21 ISO Mounting kit for ball valves ½" - 2"Approvals/ other
Adapter kits for alternative manufacturers available
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel (ISO 228/1) or NPT (ANSI B.1.20.1)
Compression ends also available.Pressure
10 Bar
Temperature
Working Temp: 0°C to +75°C
Fluid Temp (opening): 3°C
Fluid Temp (closing): 4°C -
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 only.
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 only.
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN1092 PN16
Available with reduced and equal inlet / outletsPressure
16 Bar Rated
Temperature
-20°C to +120°
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to ANSI 125 (B16.1)
Available with reduced and equal inlet / outlets.Pressure
13.8 Bar Rated
Temperature
-20°C to +120°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN1092 PN16
Pressure
16 Bar
Temperature
-20°C to +120°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125 (B16.1)
Pressure
13.8 Bar
Temperature
-20°C to +120°C
-
-
Description
-
Description
-
Description
Gunmetal Safety Valve. EPDM Diaphragm. Other diaphragms available, see datasheet.
Connection
Screwed BSP Parallel Female
Approvals/ other
CE Approved
WRAS ApprovedPressure
Set Pressure 0.5 to 16 Bar
Temperature
-50°C to +195°C
-
Description
Gunmetal High Discharge Safety Valve. EPDM Diaphragm. Other diaphragms available, see datasheet.
Connection
Screwed BSP Parallel Female
Approvals/ other
CE Approved
WRAS ApprovedPressure
Set Pressure 0.5 to 16 Bar
Temperature
-50°C to +195°C
-
Description
Gunmetal Safety Valve DIN Flange PN16. EPDM Diaphragm.
Stock Availability
Subject to factory lead time.
Connection
Flanged connection
Approvals/ other
WRAS Approved.
Pressure
Set range: 0.5 to 16 bar
Temperature
-50°C to +195°C
-
Description
Gunmetal Safety Valve DIN Flange PN16. EPDM Diaphragm.
Stock Availability
Subject to factory lead time.
Connection
Flanged connection
Approvals/ other
WRAS Approved
Pressure
Set range: 0.5 to 16 bar
Temperature
-50°C to +195°C
-
Cast Iron High Discharge Safety Valve. Fitted with bellows to protect moving parts. Read More
Subject to factory lead time.
Description
Cast Iron High Discharge Safety Valve. Fitted with bellows to protect moving parts.
Stock Availability
Subject to factory lead time.
Connection
Flange connection to BS EN1092
Approvals/ other
CE Approved
Pressure
Set Pressure 0.5 to 25 Bar
Temperature
-10°C to +120°C
-
Description
Connection
BSP Parallel Male Ends (ISO 228/1)
Pressure
Max Inlet Pressure: 16 Bar
Outlet Pressure range: 0.5 - 6 Bar
Minimum Inlet Pressure: 1 Bar
Factory Set Pressure: 3 BarTemperature
0°C to +80°C
-
Description
Pressure Reducing Valve with Gauge. Supplied with loose pressure gauge.
Connection
Compression ends (BS EN1254-2)
22mm with 15mm adaptors (adaptors supplied loose)Approvals/ other
WRAS Approved
Conforms to BS EN 1567.Pressure
See product datasheet.
Temperature
Max inlet temperature: 80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +40°C
-
Description
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +85°C
-
Description
Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.
Connection
BSP Taper M/M Ends
Approvals/ other
WRAS Approved
PED 2014/68/EU
BS EN 1567:1999 ApprovedPressure
Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.
Connection
BSP Parallel F/F Ends
Approvals/ other
WRAS Approved
PED 2014/68/EU
BS EN 1567:1999 ApprovedPressure
Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Connection
Flange - Conforms to BS EN 1092 PN16
Approvals/ other
Fully WRAS Approved Valve - Cert No. 2105035
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Description
Connection
Flange conforms to BS EN 1092-2
Pressure
Max Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 - 7 Bar
Low pressure (Inlet: 8 Bar. Outlet: 0.5-3 Bar) & High pressure (Inlet: 16 Bar. Outlet: 3-12 Bar) versions available on request.Temperature
+5°C to +65°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange conforms to BS EN 1092-2
Pressure
Max Inlet Pressure: 25 Bar Outlet Pressure: 1.5 - 7 Bar High pressure (3-12 Bar) version available on request.
Temperature
+5°C to +65°C
-
Description
Connection
BSP Parallel Male Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Conforms to BS EN 1567Pressure
See product datasheet.
Temperature
Max inlet temperature: 80°C
-
Description
Connection
BSP Parallel Female Ends
Approvals/ other
WRAS Approved.
Conforms to BS EN 1567.Pressure
See product datasheet.
Temperature
Max inlet temperature: 80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged (DIN EN 1092)
Approvals/ other
WRAS Approved
DIN DVGW Guidelines
PED 2014/68/EU
24 month warrantyPressure
Inlet Pressure: Up to 40 Bar
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-20°C to +120°C*
*See additional info on datasheet -
Description
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Complies to Directive PED 97/23/ECPressure
Adjustable range from 0.5 to 16 Bar
Temperature
0°C to 150°C
-
Description
Gunmetal Pressure Relief Valve. PTFE Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel (ISO 228)
Approvals/ other
Complies with PED 2014/68/EU
Pressure
Set pressure 0.2 to 20 Bar
Temperature
-60°C to +225°C
-
Description
Stainless Steel Pressure Relief Valve. PTFE Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel Female (ISSO 228/1)
Pressure
Up to 20 Bar Rated
Temperature
-60°C to +225°C
-
Description
Stainless Steel Pressure Reducing Valve. EPDM Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Taper M/M Ends (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Stainless Steel Pressure Reducing Valve. EPDM Seal.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: Up to 40 Bar Rated
Outlet Pressure: 1 to 8 Bar
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN 1092 PN16
Also available flanged PN25.Approvals/ other
Fully WRAS Approved Valve - Cert No. 2104026
Pressure
Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300Approvals/ other
Fully WRAS Approved Valve - Cert No. 2104026
Pressure
Max Pressure: 16 Bar Rated
Minimum Differential Pressure: 5psi (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN 1092 PN16
Also available flanged PN25.Pressure
Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to ANSI 150 (B16.42)
Also available flanged ANSI Class 300.Pressure
Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged. Conforms to BS EN 1092 PN16
Also available Flanged PN25.Pressure
Max Pressure: 16 Bar
Minimum Differential Pressure: 5PSI (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300.Pressure
Max Pressure: 16 Bar Rated.
Minimum Differential Pressure: 5psi (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged - Conforms to BS EN 1092 PN16
Also available Flanged PN25.Pressure
Max Pressure: 16 Bar
Minimum Differential Pressure: 5PSI (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to ANSI 150 (B16.42)
Available Flanged ANSI Class 300.Pressure
Max Pressure: 16 Bar
Minimum Differential Pressure: 5PSI (0.035MPa)Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300Approvals/ other
Fully WRAS Approved Valve - Cert No. 2105035
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Description
Connection
Flange - Conforms to BS EN 1092 PN25
Pressure
25 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN 1092 PN16
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged conforms to BS EN1092 PN25.
Pressure
25 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN1092 PN16
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange - Conforms to BS EN 1092 PN16
Approvals/ other
Fully WRAS Approved Valve - Cert No. 2105035
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Conforms to ANSI 150 (B16.42)
Also available Flanged ANSI Class 300Approvals/ other
Fully WRAS Approved Valve - Cert No. 2105035
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Description
Stainless Steel Safety Valve. PTFE Seal. PED 2014/68/EU.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel Female (ISO 228/1)
Pressure
Up to 70 Bar Rated.
Temperature
-60°C to +225°C
-
Description
Stainless Steel Safety Valve. PTFE Seal. PED 2014/68/EU
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel Male (ISO 228/1)
Pressure
Up to 25 Bar Rated
Temperature
-60°C to +225°C
-
Description
Brass Atmospheric Discharge Safety Valve. PTFE Seal.
Stock Availability
Subject to factory lead time.
Connection
Male BSP Parallel (ISO 228)
Approvals/ other
Complies to PED 2014/68/EU
Pressure
Set pressure: 0.2 to 50 bar
Temperature
-60°C to +225°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE & WRAS Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE & WRAS Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
CE Approved
Pressure
See attached PDF
Temperature
0°C to +120°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Pressure
See attached PDF
Temperature
0°C to +165°C
-
Description
Connection
BSP ISO 228
Approvals/ other
EN161.
Complies with PED 2014/68/EUPressure
360 mbar
Temperature
-20°C to +60°C
-
Description
Connection
BSP ISO 228
Approvals/ other
EN161.
Complies with PED 2014/68/EUPressure
360 mbar
Temperature
-20°C to +60°C
-
Description
Connection
Flanged PN16
Approvals/ other
EN161.
Complies with PED 2014/68/EUPressure
360 mbar
Temperature
-20°C to +60°C
-
Description
Pressure
See attached PDF
Temperature
-20°C to +60°C
-
-
-
Description
Connection
BSP Parallel Male Ends (ISO 228/1)
Pressure
Max Inlet Pressure: 16 Bar
Outlet Pressure range: 0.5 - 6 Bar
Minimum Inlet Pressure: 1 Bar
Factory Set Pressure: 3 BarTemperature
Pressure Reducing Valve with gauge. Controls static and dynamic pressure. Designed and manufactured to BS EN 1567. Easy to service high temperature cartridge. AISI 304 stainless steel cartridge filter. Supplied with a pressure gauge.
-
Description
Pressure Reducing Valve with Gauge. Supplied with loose pressure gauge.
Connection
Compression ends (BS EN1254-2)
22mm with 15mm adaptors (adaptors supplied loose)Approvals/ other
WRAS Approved
Conforms to BS EN 1567.Pressure
See product datasheet.
Temperature
Pressure Reducing Valve with Gauge. Supplied with loose pressure gauge.
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
Gunmetal Pressure Reducing Valve. Outlet pressure 1.5 to 7.0 bar (other outlet pressures available on request)
Pressure
Inlet Pressure: 16 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +40°C
-
Description
Connection
BSP Taper (ISO 7/1) M/M Ends
Approvals/ other
WRAS Approved
Pressure
Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)Temperature
+5°C to +85°C
-
Description
Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.
Connection
BSP Taper M/M Ends (ISO 7/1)
Approvals/ other
WRAS Approved
PED 2014/68/EU
BS EN 1567:1999 ApprovedPressure
Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Bronze / Gunmetal Pressure Reducing Valve. Optional Pressure Gauge.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
PED 2014/68/EU
BS EN 1567:1999 ApprovedPressure
Inlet Pressure: Up to 40 Bar Rated
Outlet pressure: 1 to 8 bar (pre-set at 3 bar).
Low pressure (0.5-2 Bar) & High pressure (5-15 Bar) versions available on request.Temperature
-10°C to +95°C
-
Description
Connection
Flange - Conforms to BS EN 1092 PN16
Approvals/ other
Fully WRAS Approved Valve - Cert No. 2105035
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Description
Connection
BSP Parallel Male Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Conforms to BS EN 1567Pressure
See product datasheet.
Temperature
See product datasheet.
-
Description
Connection
BSP Parallel Female Ends (ISO 228/1)
Approvals/ other
WRAS Approved.
Conforms to BS EN 1567.Pressure
See product datasheet.
Temperature
Max inlet temperature: 80°C
-
Description
Connection
F/F BSP Parallel (ISO 228/1)
Pressure
16 Bar Rated
Temperature
DZR Brass Single Check Valve. F/F BSP Parallel (ISO 228/1). Conforms with EN13959.
-
Description
Connection
Compression Ends (EN1254-2)
Approvals/ other
Conforms with EN13959
Pressure
10 Bar Rated
Temperature
Max Working Temp: +85°C
-
Description
Connection
BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Conforms with EN13959.Pressure
16 Bar Rated
Temperature
DZR Brass Double Check Valve BSP Parallel F/F Ends. 16 Bar Rated. -10°C to +85°C. WRAS Approved. Conforms with EN13959.
-
Description
Connection
Compression Ends
Approvals/ other
WRAS Approved.
Conforms with EN13959Pressure
10 Bar Rated
Temperature
-10°C to +85°C
-
Description
WRAS Approved Double Check Valve. Operates in any position. WRAS Approved as a non-return valve.
Connection
PN16 Flanged
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C - +85°C
-
Description
WRAS Approved Double Check Valve. Operates in any position. WRAS Approved as a non-return valve.
Connection
PN16 Flanged
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-10°C - +23°C
-
Description
Thermostatic Balancing Valve with Anti Legionella Device. WRAS Approved. Fluid: Water. Automatic legionella disinfectant feature. Improves efficiency of DHW systems. Automatic regulation. Reduces heat loss through lower circulation of hot water. Helps to keep temperature evenly distributed and reduces dead-legs.
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
Max working pressure (Static): 25 Bar
Temperature
Working temperature: 40°C to 60°C
Max Inlet temperature: 90°C
Anti Legionella temperature: 70°C -
Description
Compression Thermostatic Mixing Valve (TMV)
Connection
Compression Ends.
Approvals/ other
WRAS Approved.
Pressure
10 Bar (Static), 5 Bar (Dynamic)
Temperature
Temp Adjustment Range: +30°C to +48°C
-
Description
Thermostatic Mixing Valve complete with isolation valves.
Connection
Compression Ends.
Approvals/ other
WRAS Approved.
Pressure
10 Bar (Static), 5 Bar (Dynamic)
Temperature
Temp Adjustment Range: +30°C to +48°C
-
Description
Screwed Thermostatic Mixing Valve (TMV)
Stock Availability
Subject to factory lead time.
Connection
NPT
Pressure
Max Supply Pressure: 125psi
Temperature
Screwed Thermostatic Mixing Valve (TMV)
-
-
-
Description
Connection
ISO5211 Direct Mount
-
-
Description
Connection
ISO5211 Direct Mount
-
-
-
Description
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
-
Description
Brass Ball Valve BSP Parallel F/F Ends (ISO 228/1). C/W Double Acting Pneumatic Actuator.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
-
Description
Brass Ball Valve BSP Parallel F/F Ends (ISO 228/1).
C/W Spring Return Pneumatic Actuator.Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
-
Description
Connection
BSP Taper Ends (ISO 7/1)
-
Description
3 Piece Stainless Steel Ball Valve BSP Taper Ends (ISO 7/1). C/W Double Acting Pneumatic Actuator
Connection
BSP Taper Ends (ISO 7/1)
-
Description
3 Piece Stainless Steel Ball Valve BSP Taper Ends (ISO 7/1). C/W Spring Return Pneumatic Actuator.
Connection
BSP Taper Ends (ISO 7/1)
-
Description
Connection
BSP Parallel F/F Ends (ISO 228/1)
-
Description
Brass L & T Port Ball Valve BSP Parallel F/F Ends (ISO 228/1). C/W Double Acting Pneumatic Actuator.
Connection
BSP Parallel F/F Ends (ISO 228/1)
-
Description
Brass L & T Port Ball Valve BSP Parallel F/F Ends (ISO 228/1). C/W Spring Return Pneumatic Actuator.
Connection
BSP Parallel F/F Ends (ISO 228/1)
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
-
Description
Stainless Steel L & T Port BSP Taper F/F Ends (ISO 7/1). C/W Double Acting Pneumatic Actuator.
Connection
BSP Taper F/F Ends (ISO 7/1)
-
Description
Stainless Steel L & T Port BSP Taper F/F Ends (ISO 7/1). C/W Spring Return Pneumatic Actuator.
Connection
BSP Taper F/F Ends (ISO 7/1)
-
-
Description
Stainless Steel ANSI 150 Flanged Ball Valve. C/W Double Acting Pneumatic Actuator
Connection
Flanged
-
Description
Stainless Steel ANSI 150 Flanged Ball Valve.
C/W Spring Return Pneumatic Actuator.Connection
Flanged
-
-
Description
Stainless Steel Flanged PN16 Ball Valve. C/W Double Acting Pneumatic Actuator.
Connection
Flanged
-
Description
Stainless Steel Flanged PN16 Ball Valve.
C/W Spring Return Pneumatic Actuator.Connection
Flanged
-
-
Description
Stainless Steel 2 piece Flanged PN16 Fire Safe Ball Valve C/W Double Acting Pneumatic Actuator.
Connection
Flanged
-
Description
Stainless Steel 2 piece Flanged PN16 Fire Safe Ball Valve C/W Spring Return Pneumatic Actuator.
Connection
Flanged
-
Description
Connection
Flanged ANSI CLASS 150
-
Description
Connection
Flanged ANSI CLASS 150
-
Description
Connection
Flanged ANSI CLASS 150
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1)
-
Description
Connection
NPT F/F Ends (ANSI B 1.20.1)
-
Description
Connection
NPT F/F Ends (ANSI B 1.20.1)
-
Description
Connection
NPT F/F Ends (ANSI B 1.20.1)
-
Description
Ductile Iron PN16 Flanged Ball Valve, C/W Electric Actuator. 110v ac, 230v ac, 24v ac, 24v dc.
Connection
Flanged
-
Description
Ductile Iron PN16 Flanged Ball Valve, C/W Double Acting Pneumatic Actuator.
Connection
Flanged
-
Description
Ductile Iron PN16 Flanged Ball Valve, C/W Spring Return Pneumatic Actuator.
Connection
Flanged
-
Description
Connection
Wafer
Approvals/ other
WRAS Approved
-
Description
Connection
Wafer
Approvals/ other
WRAS Approved
-
Description
Connection
Wafer
Approvals/ other
WRAS Approved
-
Description
Connection
Lugged and Tapped
-
Description
Connection
Lugged and Tapped
-
Description
Connection
Lugged and Tapped
-
Description
Approvals/ other
WRAS Approved
-
Description
Approvals/ other
WRAS Approved
-
Description
Approvals/ other
WRAS Approved
-
Description
Pressure
See attached PDF.
Temperature
-20°C to +60°C
-
Description
-
PN16 Screwed Flexible Connector. EPDM Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1) Read More
NPT valves are subject to factory lead time.
Description
PN16 Screwed Flexible Connector. EPDM Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1)
Stock Availability
NPT valves are subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
-20°C to +100°C
-
Description
Connection
Screwed BSP Parallel M/F
-
PN16 Screwed Flexible Connector. NBR Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1) Read More
NPT valves are subject to factory lead time.
Description
PN16 Screwed Flexible Connector. NBR Body. BSP Taper BS21 (ISO 7/1) or NPT (ANSI B1.20.1)
Stock Availability
NPT valves are subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
-20°C to +80°C
-
PN16 Flanged Flexible Connector BS4504. EPDM Body. Read More
Sizes 14"+ subject to factory lead time.
Description
PN16 Flanged Flexible Connector BS4504. EPDM Body.
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flanged PN16 BS4504
Pressure
16 Bar Rated
Temperature
-20°C to +100°C
-
Description
Connection
Screwed BSP Parallel M/F
-
Description
PN25 Flanged Flexible Connector. EPDM Body.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN25
Pressure
25 Bar Rated
Temperature
-20°C to +100°C
-
Description
ANSI 150 Flanged Flexible Connector. EPDM Body.
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 150 (B16.5)
Pressure
16 Bar Rated
Temperature
-20°C to +100°C
-
PN16 Flanged Flexible Connector BS4504. NBR Body. Read More
Sizes 14"+ subject to factory lead time.
Description
PN16 Flanged Flexible Connector BS4504. NBR Body.
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flanged PN16 BS4504
Pressure
16 Bar Rated
Temperature
-20°C to +80°C
-
Description
PN25 Flanged Flexible Connector. NBR Body.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN25
Pressure
25 Bar Rated
Temperature
-20°C to +80°C
-
Description
ANSI 150 Flanged Flexible Connector. NBR Body.
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 150 (B16.5)
Pressure
16 Bar Rated
Temperature
-20°C to +80°C
-
-
Description
PN10 Flanged Flexible Connector BS4504. EPDM Body.
Connection
Flanged PN10
Pressure
10 Bar Rated
Temperature
-20°C to +100°C
-
Description
PN10 Flanged Flexible Connector BS4504. NBR Body.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN10
Pressure
10 Bar Rated
Temperature
-20°C to +80°C
-
Description
PN6 Flanged Flexible Connector. EPDM Body.
Stock Availability
Sizes 5"+ subject to factory lead time.
Connection
Flanged PN6
Pressure
6 Bar Rated
Temperature
-20°C to +100°C
-
PN16 Tied Flanged Flexible Connector BS4504. EPDM Body. Read More
Sizes 14"+ subject to factory lead time.
Description
PN16 Tied Flanged Flexible Connector BS4504. EPDM Body.
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-20°C to +100°C
-
Description
PN16 Tied Flanged Flexible Connector BS4504. NBR Body.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-20°C to +80°C
-
Description
PN10 Tied Flanged Flexible Connector BS4504. EPDM Body.
Connection
Flanged PN10
Pressure
10 Bar Rated
Temperature
-20°C to +100°C
-
-
Description
PN10 Tied Flanged Flexible Connector BS4504. NBR Body.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN10
Pressure
10 Bar Rated
Temperature
-20°C to +80°C
-
-
Description
M/F Threaded Stainless Steel Expansion Joint with SS Mesh.
Stock Availability
Subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1)
Stainless Steel threaded union end and Male endPressure
Up to 25 Bar Rated
Temperature
-15°C to +200°C
-
-
Description
F/F Threaded Stainless Steel Expansion Joint with SS Mesh.
Stock Availability
Subject to factory lead time.
Connection
Screwed BSP Taper (ISO 7/1)
Stainless Steel threaded union endPressure
Up to 25 Bar Rated
Temperature
-15°C to +200°C
-
-
Description
Approvals/ other
Prevents unauthorised adjustment or removal of sensor Removable with special tool
-
Flanged Stainless Steel Expansion Joint. Available Flanged PN25. Read More
Subject to factory lead time.
Description
Flanged Stainless Steel Expansion Joint. Available Flanged PN25.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16 BS EN1092
Pressure
Up to 16 Bar Rated
Temperature
-80°C to +260°C
-
Flanged Stainless Steel Expansion Joint with tie rods. Available Flanged PN25. Read More
Subject to factory lead time.
Description
Flanged Stainless Steel Expansion Joint with tie rods. Available Flanged PN25.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16 BS EN1092
Pressure
Up to 16 Bar Rated
Temperature
-80°C to +260°C
-
Flanged Stainless Steel Expansion Joint with SS Mesh. Available Flanged PN25. Read More
Subject to factory lead time.
Description
Flanged Stainless Steel Expansion Joint with SS Mesh. Available Flanged PN25.
Stock Availability
Subject to factory lead time.
Connection
Flanged PN16 BS EN1092
Pressure
Up to 16 Bar Rated
Temperature
-15°C to +200°C
-
Description
90° Elbow. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
45° Elbow. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See Datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See Datasheet for more information.
-
Description
90° M/F Elbow. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Equal Tee. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Full Socket OD Machined. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information
-
Description
Half Socket OD Machined. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Reducing Socket. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Conical Seat Union. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Flat Faced Union with PTFE Gasket. BSP threads.
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Conical Seat Union Male / Female. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Barrel Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Weld Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Reducing Bush. BSP or NPT threads.
Connection
Female thread is BSP Parallel (ISO 7/1) & Male thread is BSP Taper (ISO 7/1), or both threads to NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Reducing Hexagon Nipple. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Square Head Plug. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hexagon Head Plug. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Hose Adaptor. BSP or NPT threads.
Connection
BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Round Cap. BSP or NPT threads.
Connection
BSP Parallel (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information.
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Connection
BSP Parallel (ISO 7/1)
Approvals/ other
CE Approved
Pressure
Up to 20 Bar. See product datasheet for more information
Temperature
-20°C to +220°C. Dependent on pressure. See datasheet for more information.
-
Description
Angle Radiator Valve Pack. Pack contains ART 1597, ART 1561 & ART 1553 and ART 1504 x2.
Pressure
Up to 10 Bar
Temperature
Max working temperature 100°C
-
Description
ZO11A Ebro Valve Cast Iron Wafer Butterfly Valve. GG25 Body. 316 SS Disc.
Connection
Wafer to suit PN10, PN16, ASA 150 Flanges
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Description
Thermostatic Head. Lockable Head. Liquid Sensor. Frost setting 6°C.
Connection
M30 x 1.5 standard Connection
BSP Parallel (ISO 228/1)Approvals/ other
Conforms to EN215 Lockable head Liquid sensor Frost setting 6°C
Pressure
10 Bar Rated
Temperature
Maximum Working Temperature 100°C
-
Description
ZO14A Ebro Valve Cast Iron Lugged Butterfly Valve. GG40 Body. S/S Disc.
Connection
Flanged PN16
Pressure
16 Bar Rated
Temperature
-10°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
M30 x 1.5 connection
Approvals/ other
Conforms to EN 215
-
Description
Connection
Screwed BSP Parallel M/F (ISO 228/1)
Pressure
10 Bar Rated
Temperature
Maximum Working Temperature 100°C
-
Description
T214 Ebro Valve Cast Iron Lugged Wafer Butterfly Valve. GG40 Body. Liner PTFE. Disc Coated PTFE. Lever Op. For more information contact us here
Connection
PN16 Flanged
Pressure
16 Bar Rated
Temperature
-40°C to +200°C
-
Description
Connection
Screwed BSP Parallel M/F (ISO 228/1)
Pressure
10 Bar Rated
Temperature
Maximum Working Temperature 100°C
-
Description
T211 Ebro Valve Cast Iron Wafer Butterfly Valve. GG40 Body. Liner PTFE. Disc Coated PTFE. Lever Op. For more information contact us here
Connection
Wafer
Pressure
10 Bar Rated
Temperature
-40°C to +200°C
-
Description
Connection
Screwed BSP Parallel M/F (ISO 228/1)
Pressure
10 Bar Rated
Temperature
Maximum working temperature 100°C
-
Description
QV Ebro Valve
Aluminium Flanged Pinch Valve.
Aluminium Body. Natural Rubber Liner. Other Liners on Application. For more information contact us hereConnection
Flanged PN10
Pressure
5 Bar Rated
Temperature
-20°C to +140°C
-
Description
Angle Lockshield Radiator Valve. Auto seal tail piece. Suitable for use with all radiators.
Connection
Screwed BSP Parallel M/F (ISO 228/1)
Pressure
10 Bar Rated
Temperature
Maximum Working temperature 100°C
-
Description
Straight Lockshield Radiator Valve. Auto seal tail piece.Suitable for use with all radiators.
Connection
Screwed BSP Parallel M/F (ISO 228/1)
Pressure
10 Bar Rated
Temperature
Maximum Working temperature 100°C
-
Description
Brass Air Release Valve. Fitted with O-Ring seal.
Connection
Screwed BSP Parallel (ISO 228/1)
Pressure
10 Bar Rated
Temperature
0°C to +110°C
-
Description
Automatic Air Vent (ART 1360) and Check Valve (ART 1837)
Connection
See attached pdf
Pressure
10 Bar Rated
Temperature
+5°C to +110°C
-
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Parallel (ISO 228/1)
Pressure
10 Bar
Temperature
0°C to +110°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting ANSI 150 (B16.42)
Conforms to ASME B16.10Pressure
17.2 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 only.
Flange conforms to BS EN1092 PN16Pressure
16 Bar Rated.
Temperature
0°C to +80°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 only.
Flange conforms to BS EN1092 PN16.Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Description
Stock Availability
Not stocked in the UK.
Connection
Female Threads NPT (ANSI B1.20.1)
Male Threads 3/4" NHTPressure
125psi (8.6 Bar)
Temperature
-10°C to +100°C
-
Description
Lead Free Brass Vacuum Breaker
Stock Availability
Not stocked in the UK.
Connection
Male / Female NHT Threads
Pressure
125psi (8.6 Bar)
Temperature
+5°C to +82°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Parallel (ISO 228/1)
Pressure
16 Bar Rated
Temperature
-20°C to +90°C
-
Description
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (BS21) or NPT (ANSI B1.20.1)
Pressure
16 Bar Rated
Temperature
0°C to +110°C
-
Description
Stock Availability
Subject to factory lead time.
Connection
Screwed BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
0°C to +110°C
-
Not stocked in the UK.
Description
Stock Availability
Not stocked in the UK.
Connection
BSP or NPT
Pressure
Working pressure 150psi
Static pressure 250psi
Max. pressure 400psiTemperature
-73°C to +149°C
-
Description
Stock Availability
Not stocked in the UK.
Connection
BSP and NPT
Pressure
Max Pressure 350psig
Working Pressure 150psi (10.6 bar)Temperature
0.5°C to 82°C
-
Female iron pipe thread to female brass thread. Complies with ASSE 1079. Read More
Not stocked in the UK.
Description
Female iron pipe thread to female brass thread. Complies with ASSE 1079.
Stock Availability
Not stocked in the UK.
Connection
BSP Parallel (ISO 228/1) or NPT (ANSI B1.20.1)
Pressure
Max. 17.2 Bar (250psi)
Temperature
Max. 82°C (180°F)
-
Female iron pipe thread to male brass pipe threaded connections. Complies with ASSE 1079. Read More
Not stocked in the UK.
Description
Female iron pipe thread to male brass pipe threaded connections. Complies with ASSE 1079.
Stock Availability
Not stocked in the UK.
Connection
BSP Parallel (ISO 228/1) or NPT (ANSI B1.20.1)
Pressure
Max. 17.2 Bar (250psi)
Temperature
Max. 82°C (180°F)
-
Male iron pipe thread to male brass pipe threaded connections. Complies with ASSE 1079. Read More
Subject to factory lead time.
Description
Male iron pipe thread to male brass pipe threaded connections. Complies with ASSE 1079.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel threads (ISO 228/1) or NPT threads (ANSI B1.20.1)
Pressure
17.2 Bar (250psi)
Temperature
82°C (180°F)
-
Female iron pipe thread to brass solder end. Complies with ASSE 1079. Read More
Subject to factory lead time.
Description
Female iron pipe thread to brass solder end. Complies with ASSE 1079.
Stock Availability
Subject to factory lead time.
Connection
BSP Parallel (ISO 228/1) or NPT (ANSI B1.20.1)
Pressure
Max. 17.2 Bar (250psi)
Temperature
Max. 82°C (180°F)
-
Dielectric Flange. Steel Side Weld End x Brass Side Solder End. Read More
Subject to factory lead time.
Description
Dielectric Flange. Steel Side Weld End x Brass Side Solder End.
Stock Availability
Subject to factory lead time.
Connection
Steel Side Weld End x Brass Side Solder End.
Flanged to PN16 or ANSI 150.Pressure
250 PSI (17.2 Bar)
Temperature
Max working temperature: 120°C (248°F)
-
Dielectric Flange. Steel Side Female Threading x Brass Side Female Threading. Read More
Subject to factory lead time.
Description
Dielectric Flange. Steel Side Female Threading x Brass Side Female Threading.
Stock Availability
Subject to factory lead time.
Connection
Steel Side Female Threading x Brass Side Female Threading.
Steel Side Threading BSPT / NPT
Brass Side Threading BSPT / NPTPressure
250 PSI (17.2 Bar)
Temperature
Max working temperature: 120°C (248°F)
-
Dielectric Flange. Steel Side Weld End x Bronze Side Solder End. Read More
Subject to factory lead time.
Description
Dielectric Flange. Steel Side Weld End x Bronze Side Solder End.
Stock Availability
Subject to factory lead time.
Connection
Steel Side Weld End x Bronze Side Solder End.
Flanged to PN16 or ANSI 150.Pressure
250 PSI (17.2 Bar)
Temperature
Max working temperature: 120°C (248°F)
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Connection standard EN1092-2
Pressure
10 / 16 Bar Rated
Temperature
0°C to +80°C
